8-25
8
To drain the water from the V-belt case
1. Place the ATV on a level surface.
2. Place a container under the V-belt case, and
then remove the V-belt case drain screw and
its gasket to drain the water from the V-belt
case.
3. Install the V-belt case drain screw and its new
gasket, and then tighten the screw to the
specified torque.
EBU23940
Adjusting the carburetor
The carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the peri-
odic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. Therefore,
most carburetor adjustments should be left to a
Yamaha dealer, who has the necessary profes-
sional knowledge and experience. The adjustment
described in the following section, however, may
be performed by the owner as part of routine main-
tenance.
ECB00480
The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of or
damage to the engine.

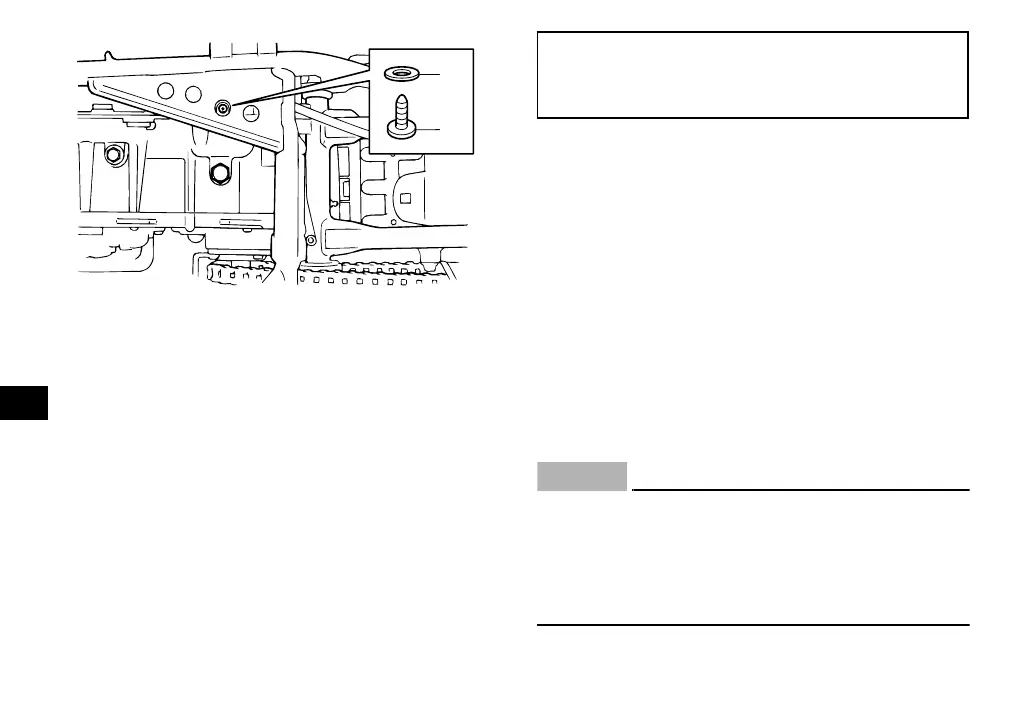

1. V-belt case drain screw
2. Gasket
Tightening torque:
V-belt case drain screw:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
U1PY61E0.book Page 25 Wednesday, March 14, 2012 5:22 PM
