Auxiliary DC jack
The auxiliary DC jack is located at the front
right side of the ATV. The auxiliary DC jack
can be used for suitable work lights, radios,
etc. The auxiliary DC jack can only be used
when the main switch is in the “ON” position.
1. Turn the headlight switch to the “OFF”
position.

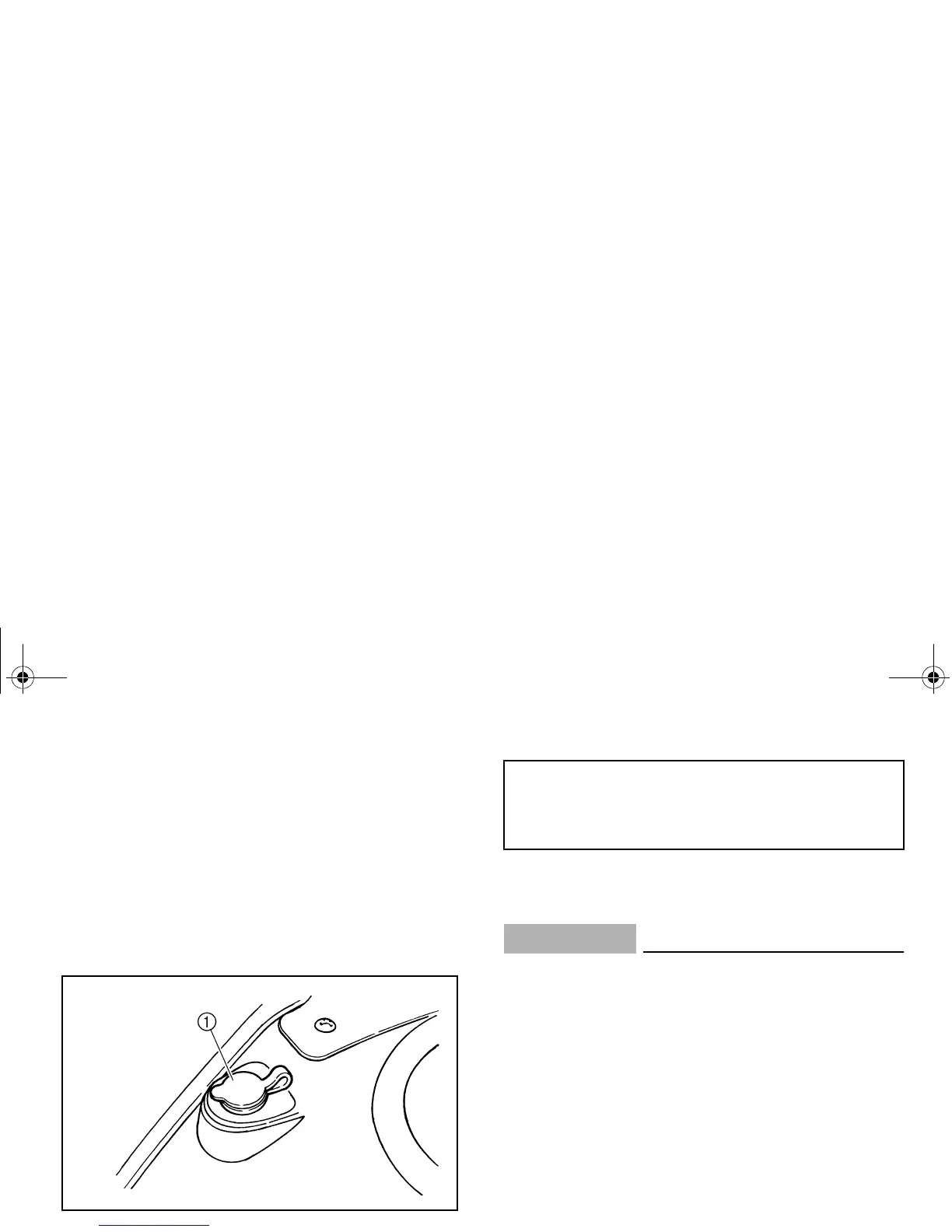

1. Auxiliary DC jack cap
2. Start the engine. (See pages 6-1–6-3.)
3. Open the auxiliary DC jack cap and insert
the accessory power plug into the jack.
4. When the auxiliary DC jack is not being
used, cover it with the cap.
CAUTION:
●
Do not use accessories requiring
more than the above maximum capac-
ity. This may overload the circuit and
cause the fuse to blow.
●
If accessories are used without the
engine running or with the headlight
turned on, the battery will lose its
charge and engine starting may be-
come difficult.
●
Do not use an automotive cigarette
lighter or other accessories with a
plug that gets hot because the jack
can be damaged.
Maximum rated capacity for the
auxiliary DC jack:
DC 12 V, 120 W (10 A)
