Yamaha Loopfactory DX200 - 5. LED Circuit Board (time required: about 5 min)

10
DX200
5. LED Circuit Board (time required: about 5 min)
5-1 Remove the bottom assembly. (See Procedure 1.)
5-2 Remove the PLG150-DX circuit Board.
(See Procedure 2.)
5-3 Remove the DM circuit Board. (See Procedure 3.)
5-4 Remove the PN circuit Board. (See Procedure 4.)

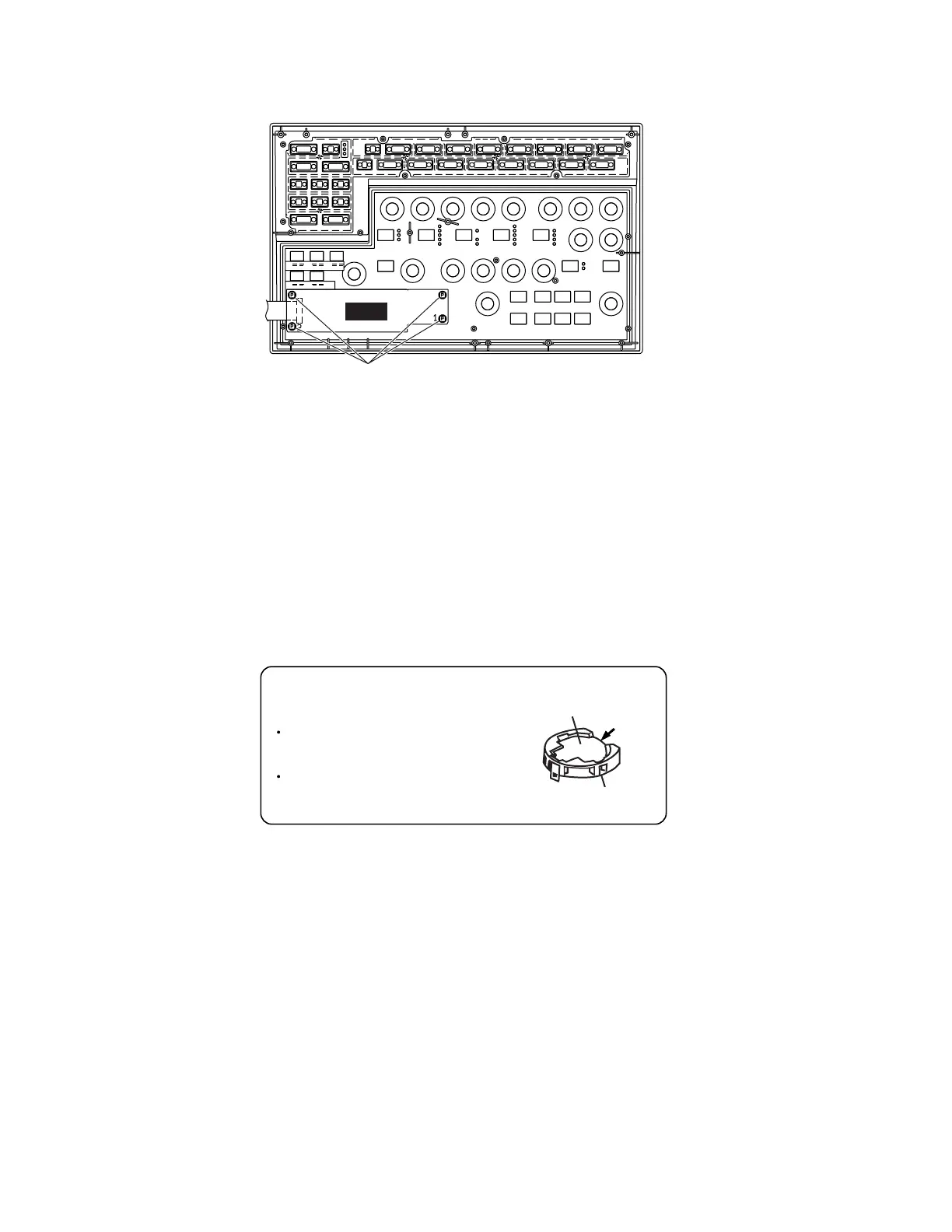

5-5 Remove the four (4) screws marked [40]. The LED
circuit board can then be removed. (Fig. 5)
LED
[40]
Battery VN103500
VN103600 (Battery holder for VN103500)
Notice for back-up battery removal
push the battery as shown in figure,
then the battery will pop up.
Druk de batterij neer beneden zoals
aangeven in de tekening, de batterij
springt dan neer voren.
Battery
Battery holder
[40]: Bind Head Tapping Screw-P 2.6X8 MFZN2Y (EP620100)
(Fig. 5)
