7

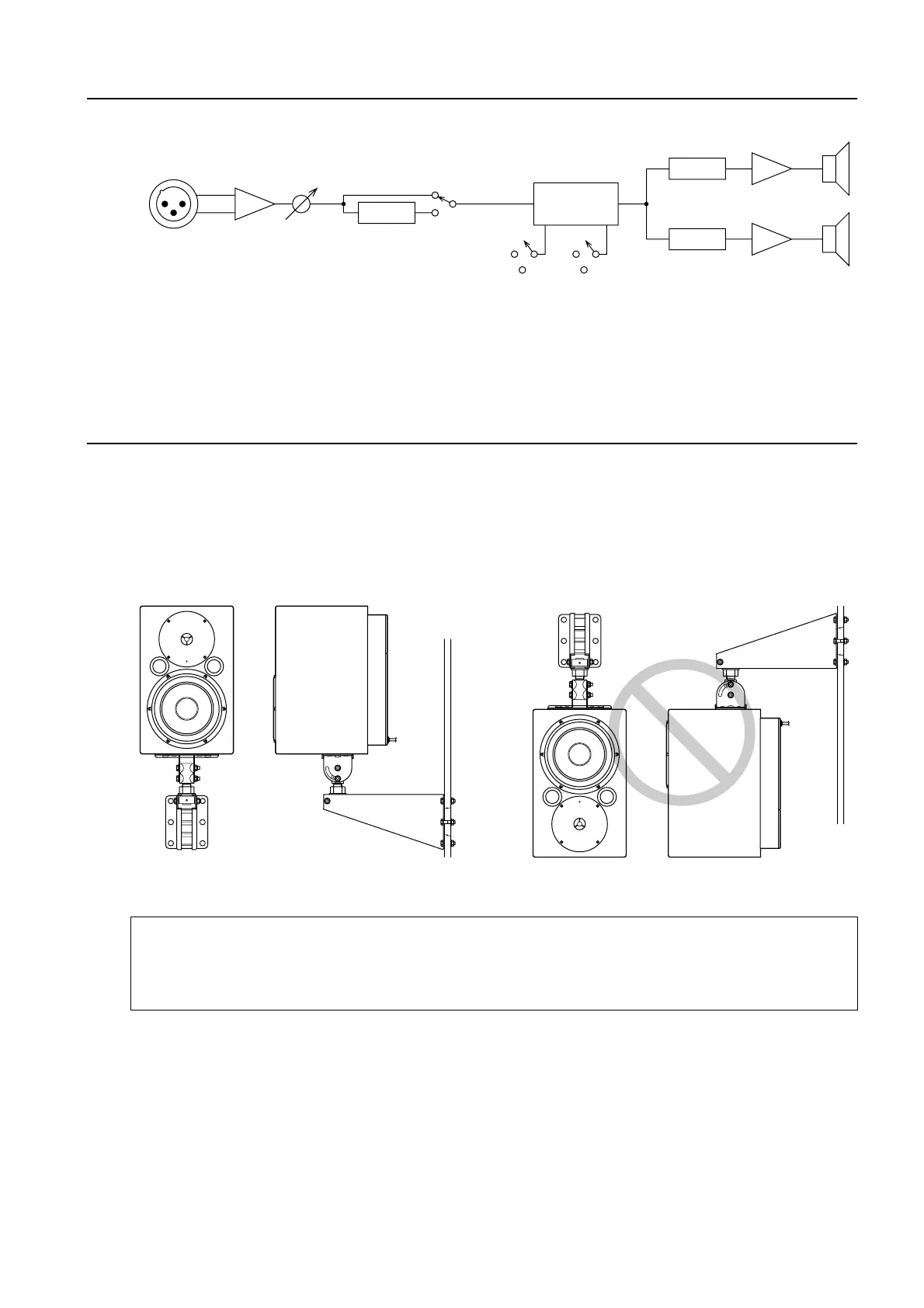

Block Diagram
Mounting the MSP10/10M on the wall
You can install the MSP10/10M on the wall using an optional Yamaha wall bracket BWS251-300. For more
information on how to install it, refer to the instructions that come with the wall bracket. For the angle and
position of installation, refer to the figure below.
The wall should be strong enough to support the speaker and equivalent to a sheet of plywood with a
thickness of 18
mm (11/16 inches) or more. Use appropriate tools for installation.
• Recommend for new constructions.
• Ask an installation specialist for instruction.
• Some installation parts may deteriorate due to friction or corrosion over a long period of time. For safety,
check these parts and condition regularly.
LPF
HPF
TRIM
HIGHLOW
–1
0
+1
–2
–1
0
EQ
HPF
LOW CUTSENSITIVITY
INPUT
