INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU36692

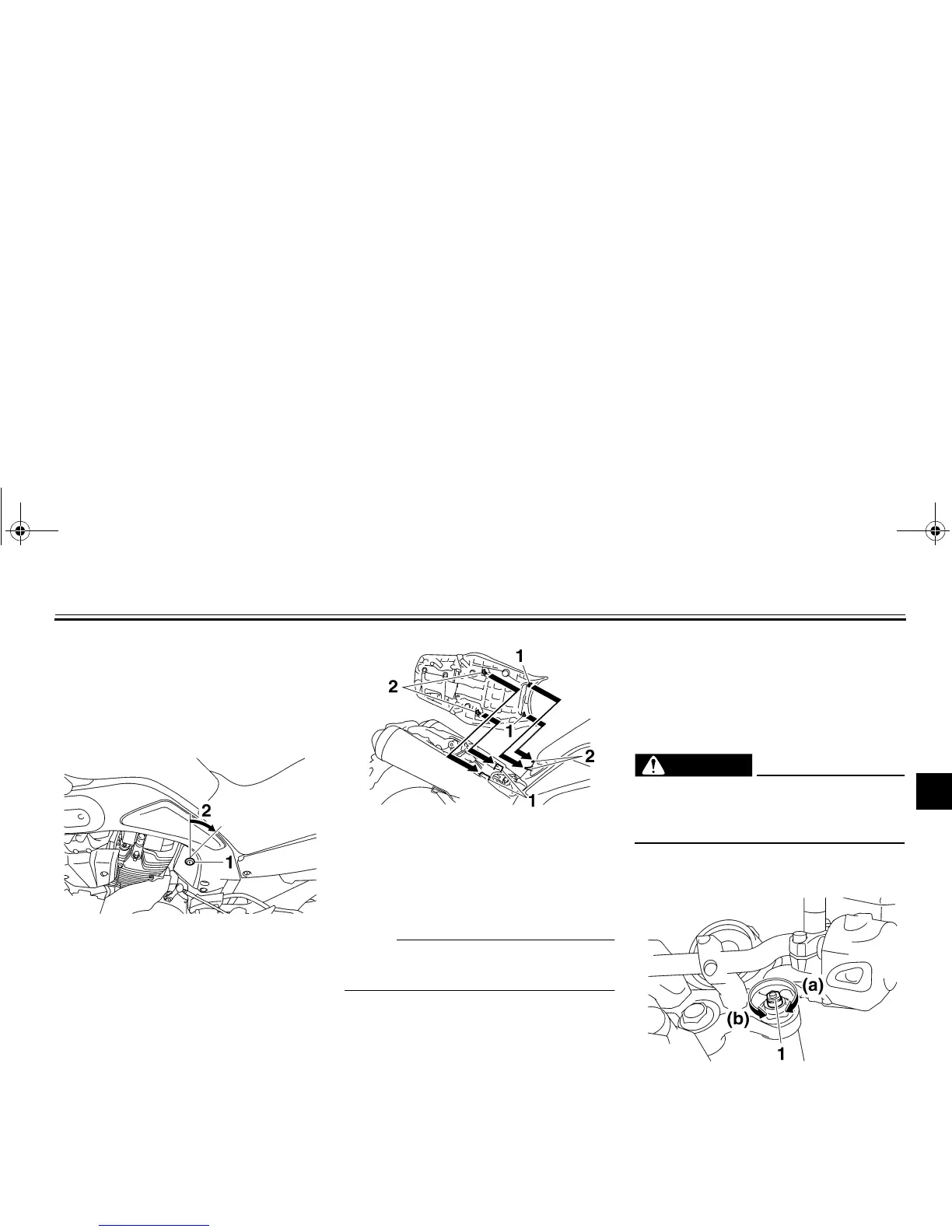

Seat
To remove the seat
1. Insert the key into the seat lock,
and then turn it clockwise.
2. Pull the seat off.
To install the seat
1. Insert the projections into the seat
holders as shown.
2. Push the center of the seat down
to lock it in place.
3. Remove the key.
NOTE:
Make sure that the seat is properly se-
cured before riding.
EAU36932
Adjusting the front fork
This front fork is equipped with spring
preload adjusting bolts, rebound damp-
ing force adjusting screws and com-
pression damping force adjusting bolts.
WARNING
EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result.
Spring preload
To increase the spring preload and
thereby harden the suspension, turn
the adjusting bolt on each fork leg in di-
rection (a). To decrease the spring pre-
1. Seat lock
2. Unlock.
1. Seat holder
2. Projection
1. Spring preload adjusting bolt
U5YUE3E0.book Page 15 Thursday, September 20, 2007 3:03 PM
