Yamaha MT-15 - Multi-Function Meter Unit

Instrument and control functions
4-4
4
EAUU2151

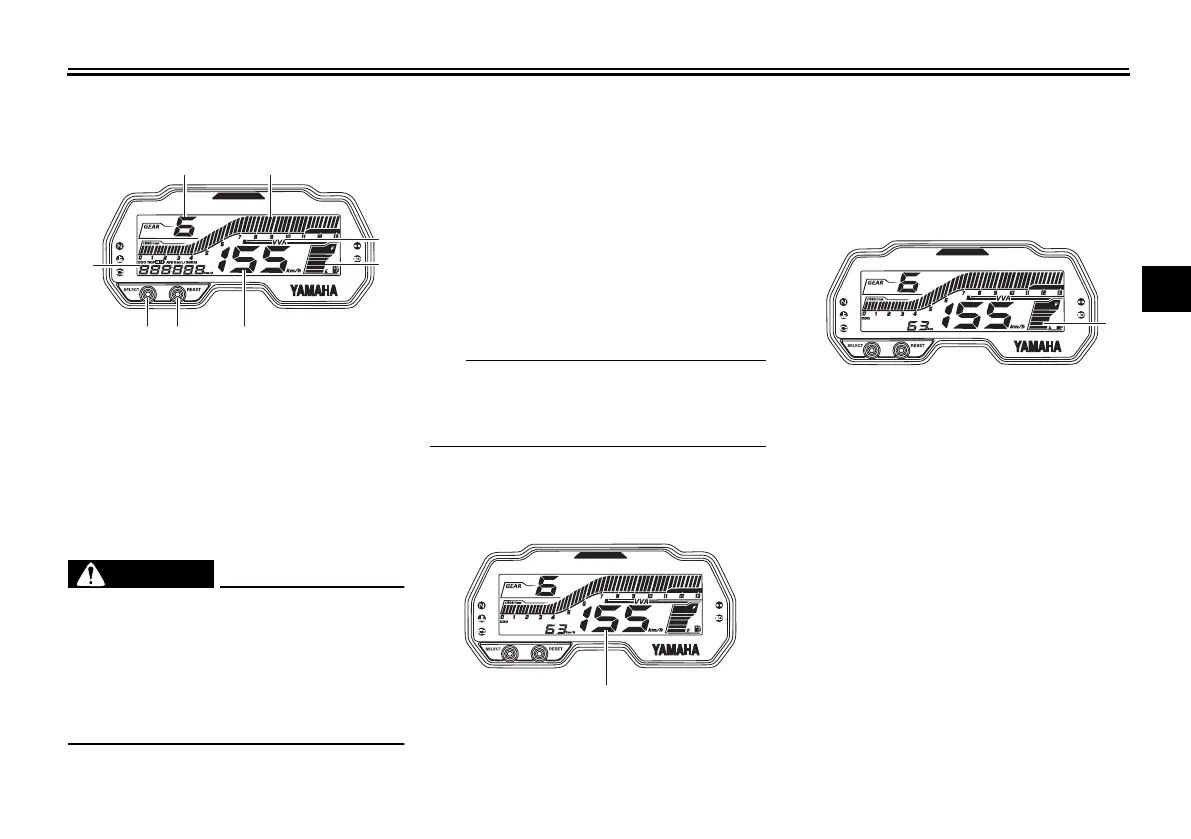

Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:
z a speedometer
z a fuel meter
z a VVA indicator
z a tachometer
z a transmission gear display
z a multi-function display
z a shift light
TIP
In addition, the screen brightness, the
shift light, and the welcome screen can
be adjusted.
Speedometer
The speedometer shows the vehicle’s
traveling speed.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases. When the last seg-
ment start flashing, refuel as soon as
possible.
When the main switch is turned on, all
of the segments of the fuel meter will
appear for a few seconds, and then the
fuel meter shows the actual fuel level.
1. “SELECT” button
2. “RESET” button
3. Speedometer
4. Fuel meter
5. VVA (variable valve actuation) indicator
6. Tachometer
7. Transmission gear display
8. Multi-function display
67
8
1
2
3
4
5
1. Speedometer
1
1. Fuel meter
1
