Instrument and control functions
3-20
3
2. Pull up the corners on the rear of
the rider seat as shown and re-
move the bolts with the hexagon
wrench.
3. Lift the seat rearward and up to re-
move it.
To install the rider seat
1. Fit the slot in the seat onto the pro-
jection on the frame cross mem-
ber as shown, and then place the
seat in the original position.
2. Install the bolts with the hexagon
wrench.
3. Insert the hexagon wrench back
into its holder on the passenger
seat.
4. Install the passenger seat.
Make sure that the seats are properly
secured before riding.
EAU59981
Helmet holding cable
A helmet holding cable is located on
the bottom of the passenger seat. Use
this cable in conjunction with the
screwdriver to secure a helmet to the
vehicle.
To secure a helmet with the helmet
holding cable
1. Remove the passenger seat. (See
page 3-19.)
2. Remove the screwdriver from its
holders on the passenger seat,
and then remove the helmet hold-
ing cable from the screwdriver.

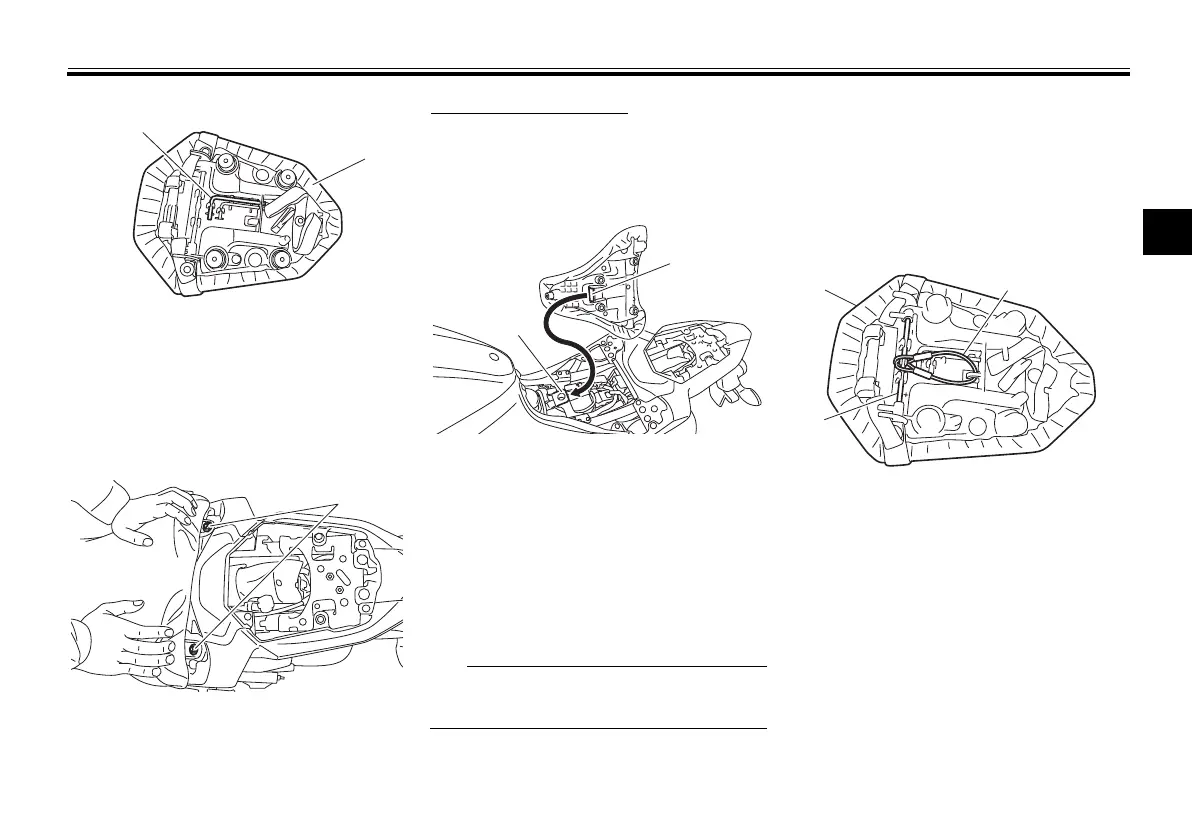

1. Passenger seat
2. Hexagon wrench
1. Bolt
1. Slot
2. Projection
1. Passenger seat
2. Helmet holding cable
3. Screwdriver
