Periodic maintenance and adjustment
6-40
6
A rubber mallet may be useful to tap
the wheel axle out.
7. Remove the wheel. NOTICE: Do
not apply the brake after the
wheel and brake disc have been
removed, otherwise the brake
pads will be forced shut.
[ECA11073]
To install the rear wheel
1. Install the wheel, the brake caliper
bracket, and the drive chain slack
adjusting plate by inserting the
wheel axle from the right-hand
side.
Make sure that the slot in the
brake caliper bracket is fit over the
retainer on the swingarm.
Make sure that there is enough
space between the brake pads
before installing the wheel.
If the chain puller is removed,
make sure that the arrow mark on
each chain puller is pointing up-
ward.
2. Install the drive chain onto the rear
sprocket.
3. Install the drive chain slack adjust-
ing plate, washer and the axle nut.
4. Lower the rear wheel so that it is
on the ground, and then put the
sidestand down.
5. Adjust the drive chain slack. (See
page 6-23.)
6. Tighten the axle nut, and then
tighten the locknuts to the speci-
fied torques.

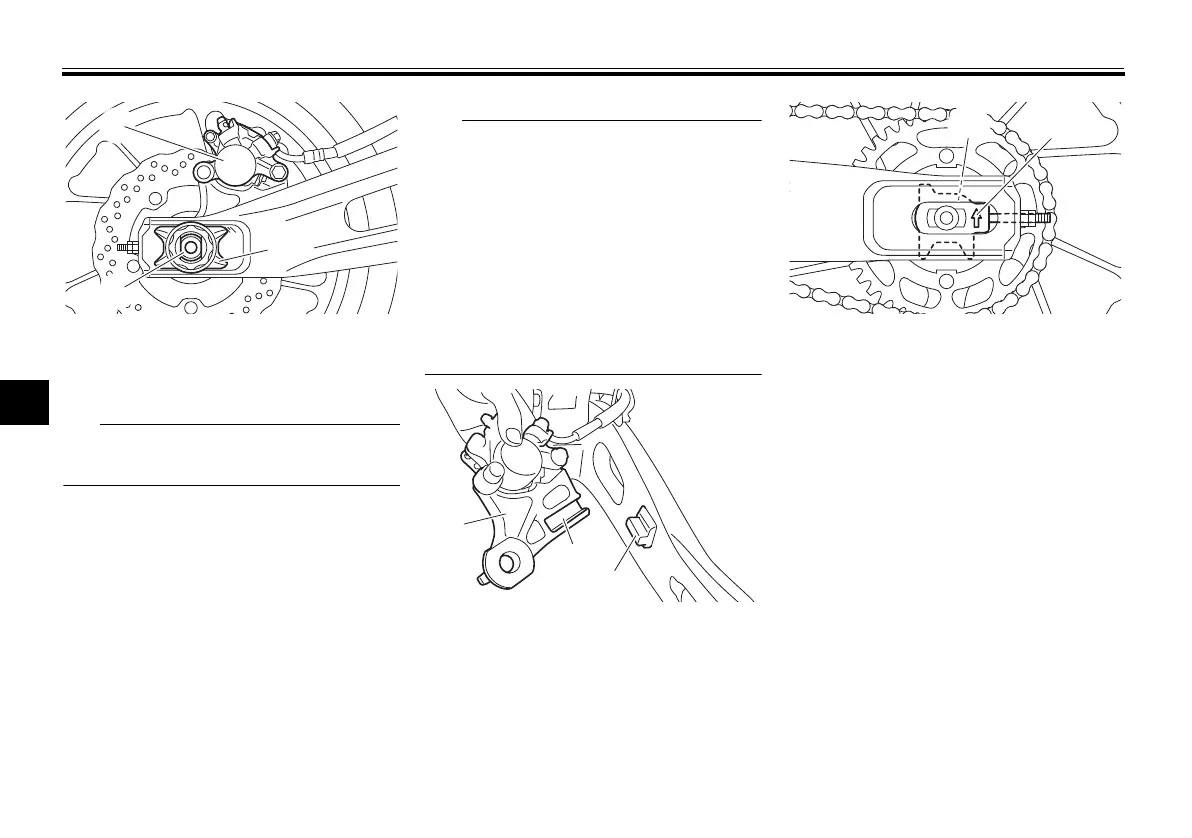

1. Brake caliper
2. Drive chain slack adjusting plate
3. Wheel axle
1. Brake caliper bracket
2. Slot
3. Retainer
1. Drive chain puller
2. Arrow mark
