16
DRX-730/NX-E700
DRX-730/NX-E700
Screwdriver
(An Allen hex socket screwdriver 2.5 mm)
Lid
Disc tray
CB4
CB9
CB11
CB7
CB968
CB962
CB967
Ground lead
Rubber sheet and cloth
MAIN (1) P.C.B.
Ground lead
Ground lead
AM/FM tuner
DVD mechanism ass'y
P.C.B. support
DVD module P.C.B.

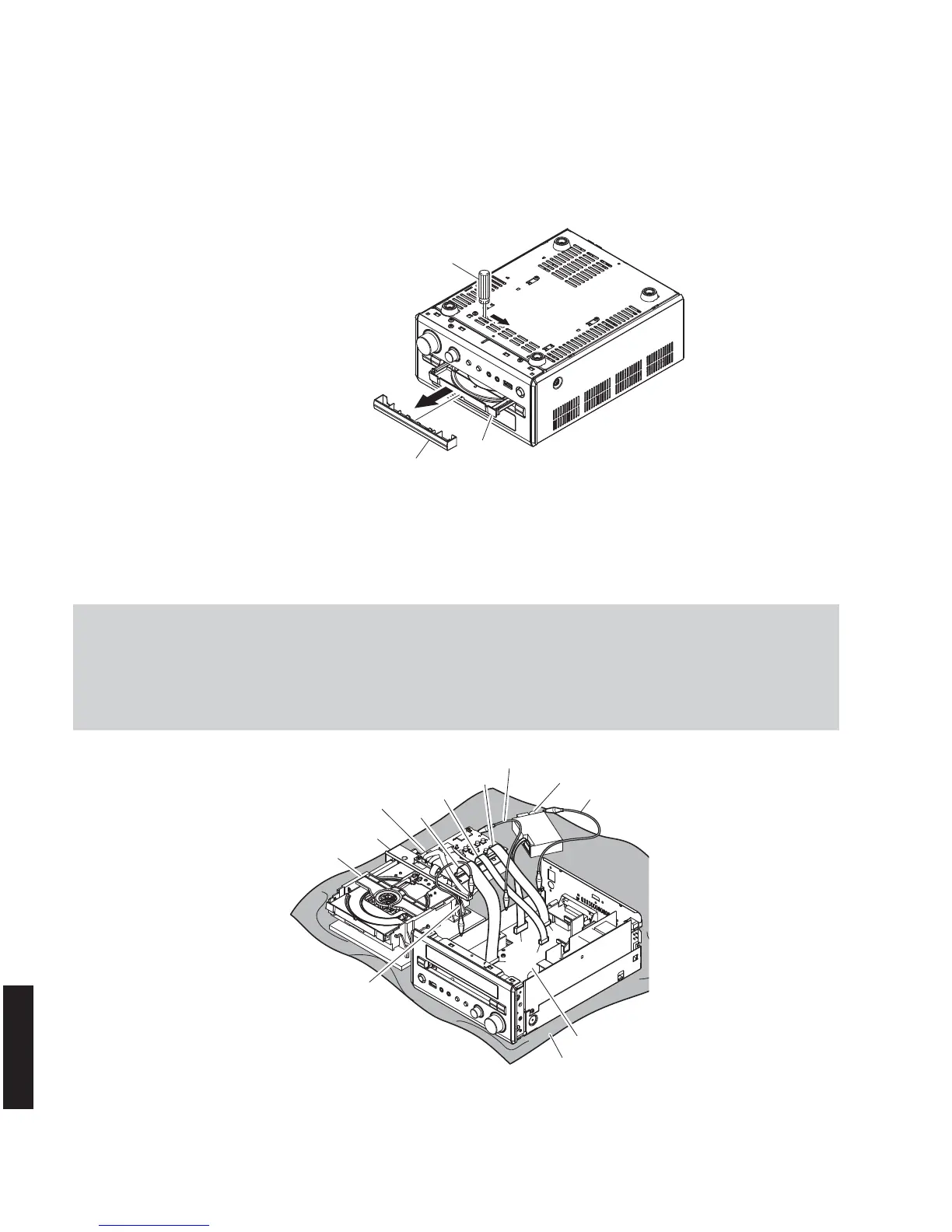

Fig. 2
Fig. 3
● How to manually eject the disc tray
a. Move the slider in the direction indicated in the figure below with a screwdriver until the disc tray is ejected. (Fig. 2)
Note: An Allen hex socket screwdriver 2.5 mm is recommended for this operation.
b. Gently pull the disc tray out.
When checking the P.C.B.s:
• Spread the rubber sheet and the cloth. Then place this unit on the cloth and check it. (Fig. 3)
• Reconnect all cables (connectors) that have been disconnected.
• When connecting the flexible flat cable, be careful with polarity.
• Connect the ground point of the DVD module P.C.B., AM/FM tuner and P.C.B. support to the chassis with a ground
lead or the like. (Fig. 3)
