Yamaha NX-E700 - Page 67

68
DRX-730/NX-E700
ABCDE
1
2
3
4
5
6
7
NX-E700
22
22
2
3
1-12
4
1
30
30
21
7-1
7-2
7-3
12
7
13
INPUT
R1
2.7ohms/5W
L1
1.0mH
L2
0.27mH
C2
3.3uF/63V
C1
8.2uF/63V
TWEETER
WOOFER

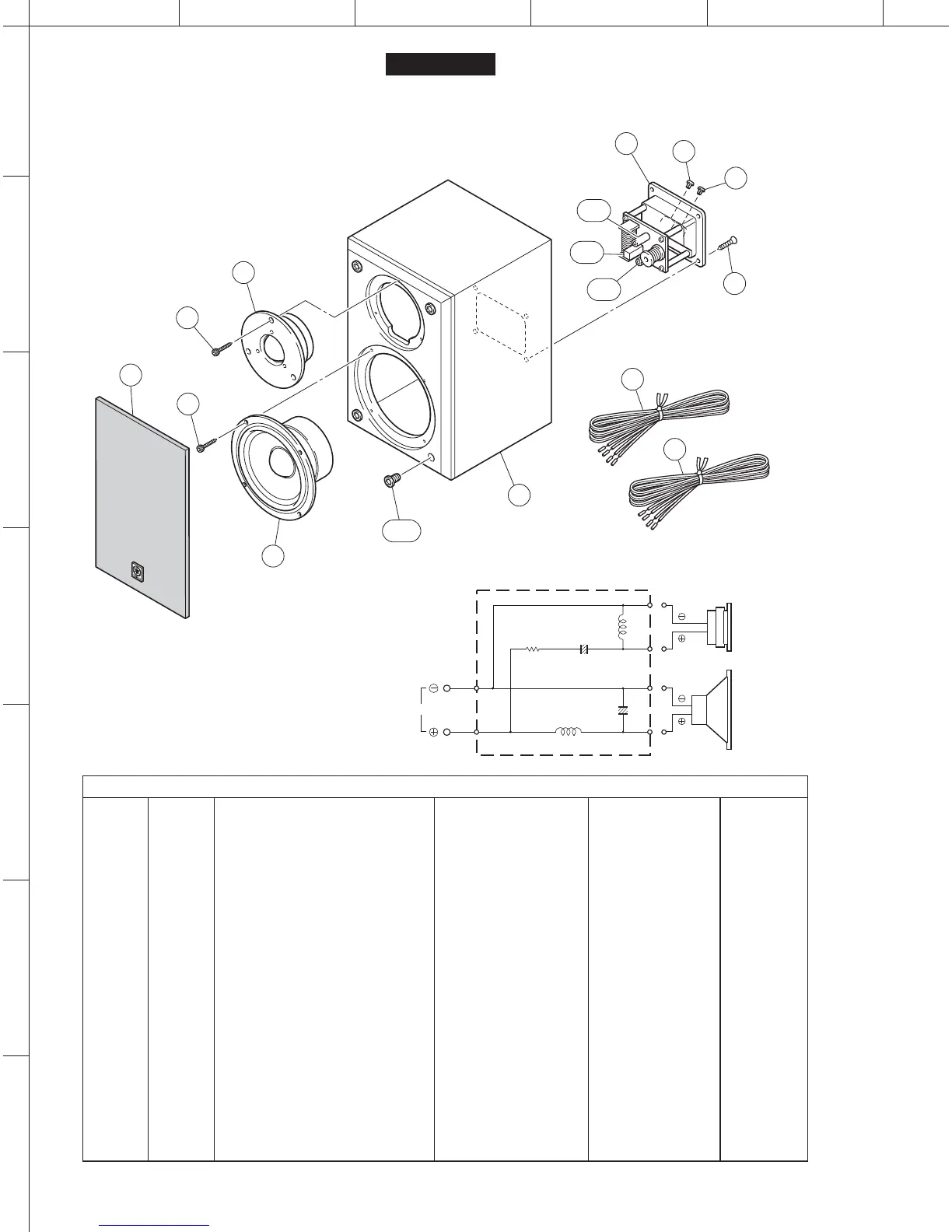

1 WG237700 CABINET ASS'Y Black color GD, BL, SI
1 WM884000 CABINET ASS'Y White color WH
1-12 V9909600 HOLDER
2 WG237800 FRONT GRILLE ASS'Y Black color GD, BL, SI
2 WM884100 FRONT GRILLE ASS'Y White color WH
3 XW275B00 DRIVER TWEETER 2.5cm 5 Ω JA05U3
4 XZ668D00 DRIVER WOOFER 11cm 6 Ω JA1151
7 V9504600 NETWORK ASS'Y
7-1 V6055400 ELECTROLYTIC CAP 8.2uF 63V C1
7-2 V6367500 ELECTROLYTIC CAP 3.3uF 63V C2
7-3 V9507500 CEMENT RESISTOR 2.7 Ω 5W R1
12 V5361400 TERMINAL CAP S06E RED
13 V5361500 TERMINAL CAP S06E BLACK
21 WE963200 FLAT HEAD WOOD SCREW 3.5x20 MFZN2B3
22 WF824200 HEXAGON HEAD WOOD SCREW 4x25 MFZN2B3
ACCESSORY
30 V9826900 SPEAKER CABLE 4m 1pc
✻ New Parts
Ref No. Part No. Description Remarks Markets
• OVERALL ASS'Y
