Yamaha Portable Grand YPG-635 User Manual

22
DGX-630/YPG-635
17-7 White key assembly and black key assembly
After applying grease to the key guide, install the white
key assembly/black key assembly.
At this time, check to make sure that the key guide of the
key frame and inside slit at the front of white key as well
as the contact arm of the hammer and actuate rubber of
the white key assembly/black key assembly are installed
properly. (Fig.22)
Use the four (4) screws marked [270A] to fix 1 octave
white key assembly/black key assembly. (Fig.10)
17-7 白鍵Ass'y、黒鍵Ass'y
キーガイドにグリス塗布後、白鍵Ass'y、黒鍵Ass'yを取り付
けます ｡
この時 、鍵盤フレームのキーガイドと白鍵前部の内側スリッ
ト、ハンマーの接点アームと白鍵Ass'y、黒鍵Ass'yの駆動ラ
バーがはめ込まれていることを確認してください ｡（図22）
1オクターブの白鍵Ass'y、黒鍵Ass'yは、[270A]のネジ4本で
固定します｡（図10）

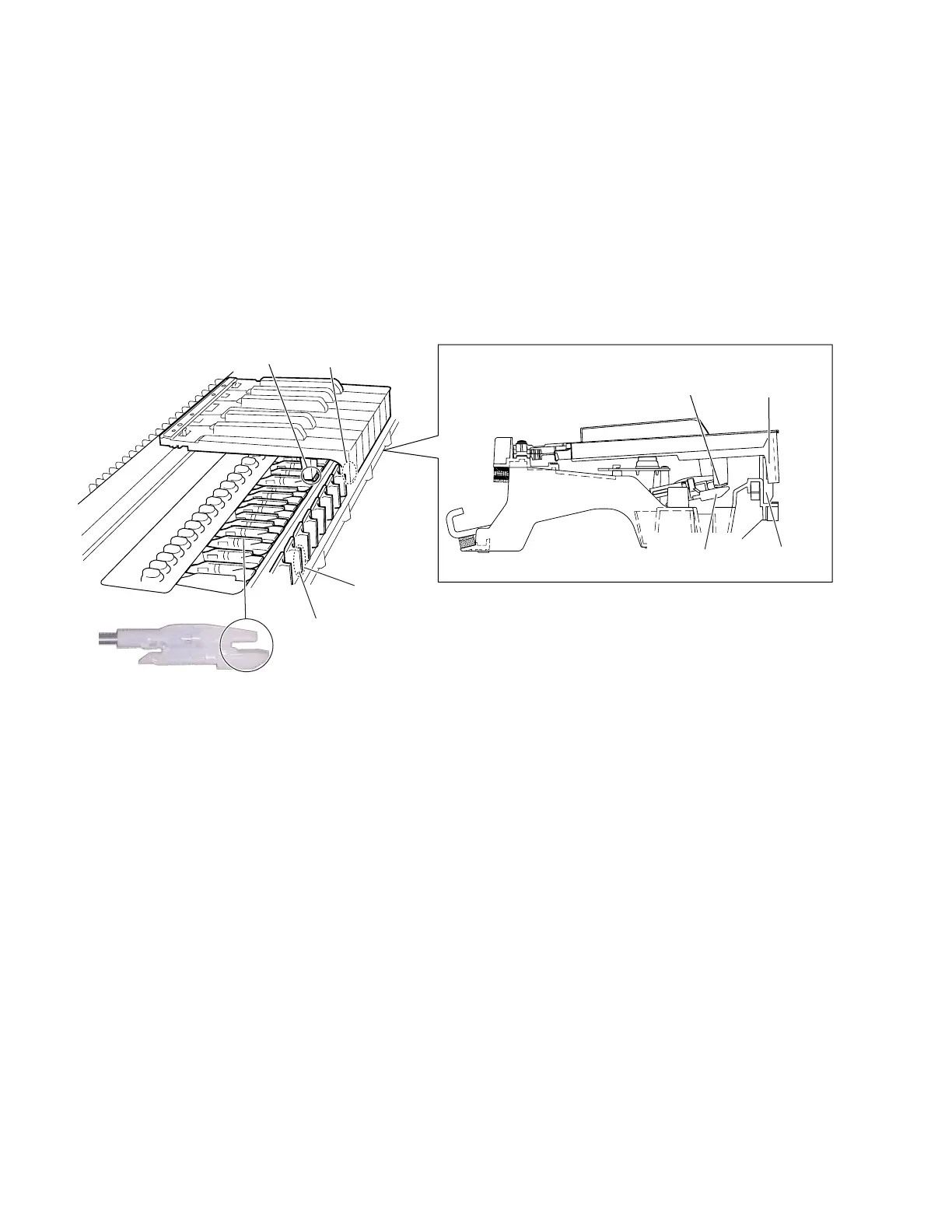

Contact arm
（接点アーム）
Hammer
（ハンマー）
Slit
（スリット）
Slit
Contact arm
（接点アーム）
Key guide
（キーガイド）
Key guide
（キーガイド）

Actuate rubber
（駆動ラバー）
Apply grease.
（グリス塗布）
Actuate rubber
（駆動ラバー）
<Side view> <横から見た図>
Fig.22（図 22）
17-8 Use the two (2) screws marked [270B] to fix the A-1 to
B-1 keys. (Fig.10)
17-9 Use a screw marked [270C] to fix the C7 key. (Fig.10)
17-8 A-1〜B-1鍵は、[270B]のネジ2本で固定します｡（図10）
17-9 C7鍵は、[270C]のネジ1本で固定します｡（図10）
