Yamaha R1 2003 User Manual

4 - 65
CHAS

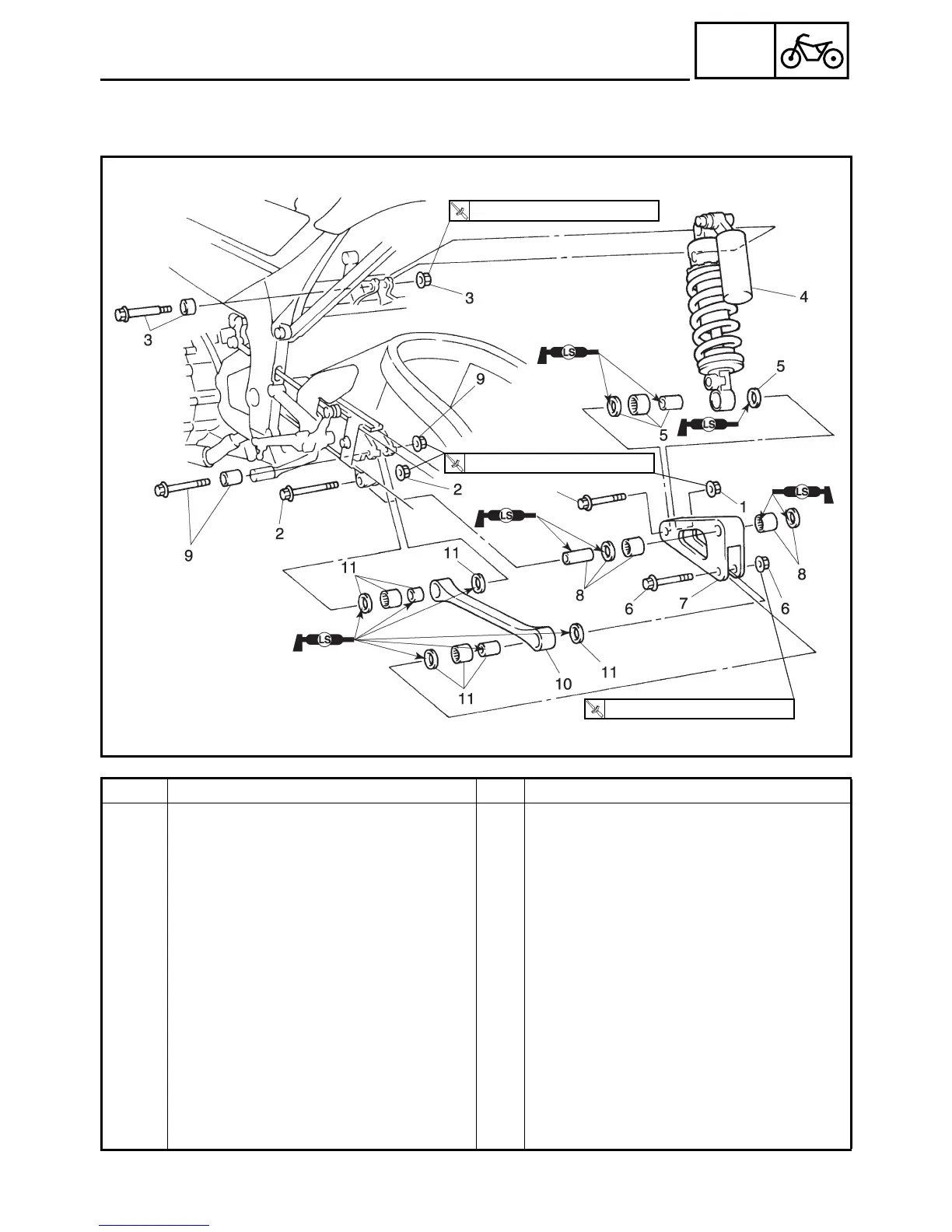

REAR SHOCK ABSORBER ASSEMBLY
EAS00685
REAR SHOCK ABSORBER ASSEMBLY
T
R
.
.
45 Nm (4.5 m
•
kg, 33 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 33 ft
•
Ib)
T
R
.
.
45 Nm (4.5 m
•
kg, 33 ft
•
Ib)
1
Order Job/Part Q’ty Remarks
Removing the rear shock absorber
assembly
Remove the parts in the order listed.
1 Self-locking nut/bolt 1/1
2 Self-locking nut/bolt 1/1
3 Self-locking nut/bolt/spacer 1/1/1
4 Rear shock absorber assembly 1
5 Collar/oil seal/bearing 1/2/1
6 Self-locking nut/bolt 1/1
7 Relay arm 1
8 Collar/oil seal/bearing 1/2/2
9 Self-locking nut/bolt/collar 1/1/1
10 Connecting arm 1
11 Collar/oil seal/bearing 2/4/2
For installation, reverse the removal
procedure.

Yamaha R1 2003 Specifications

General

Compression Ratio	11.8:1
Fuel System	Fuel injection
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/50-ZR17
Wheelbase	1, 395 mm
Seat Height	835 mm
Width	720 mm
Ground Clearance	135 mm
Front Suspension	43mm telescopic fork
Rear Suspension	Single shock
Front Brakes	Dual 320 mm discs
Rear Brakes	220 mm disc, single-piston caliper
Fuel Capacity	18 L
Maximum Power	152 hp @ 10, 500 rpm
Maximum Torque	106 Nm (78 lb-ft) @ 10, 500 rpm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 20-valve, inline-four
Length	2, 060 mm
