Multi-function meter unit
The multi-function meter unit is also
equipped with a display brightness and
shift timing indicator light settings
mode.
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
EAU92991
The multi-function meter is controlled
using the “SEL/RES” switch. 4-11 for
more information.
EAU93001
Switching the display units
The display units can be switched be-
tween kilometers and miles. To switch
the display units, set the multi-funtion
display to the odometer or a tripmeter,
and then hold the “SEL” switch until
the display units change.
EAU86831
Speedometer
The speedometer shows the vehicle’s
traveling speed.
EAU87170
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
ECA10032
Do not operate the engine in the ta-
chometer red zone.
Red zone: 10000 r/min and above

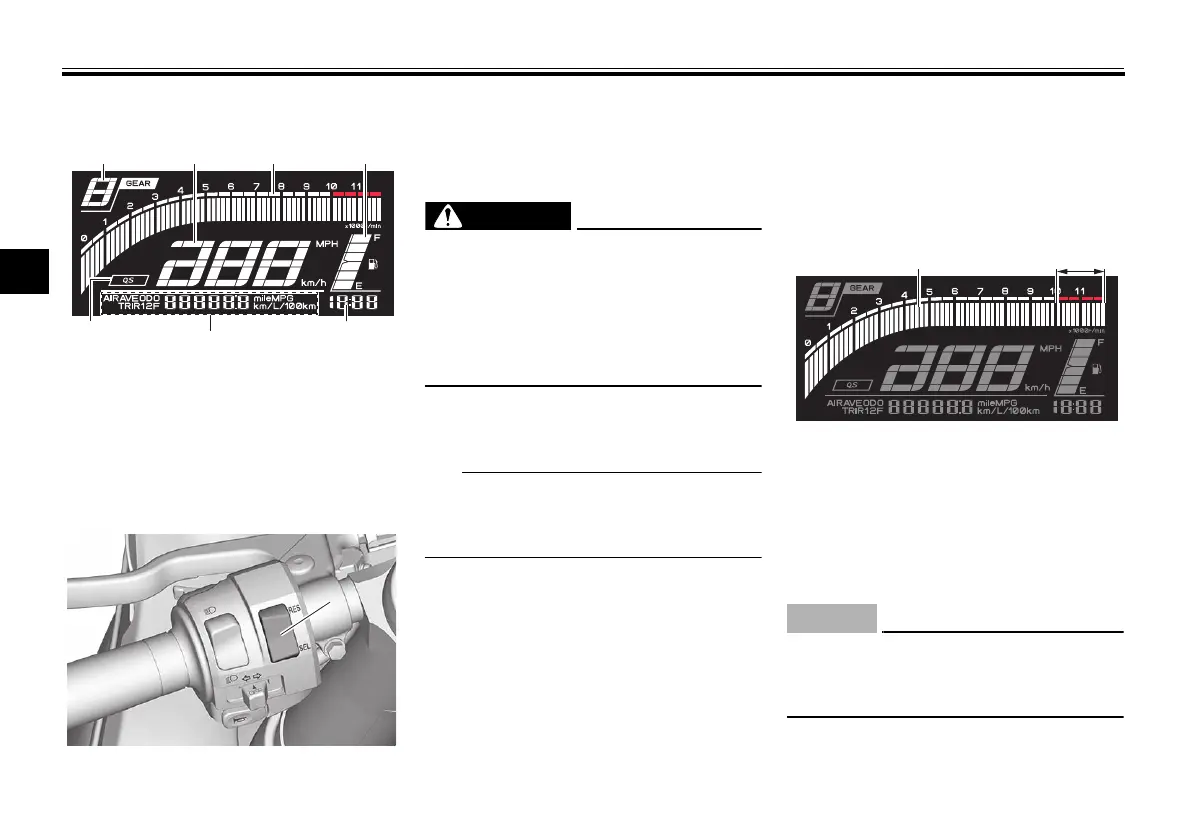

1. Transmission gear display
2. Speedometer
3. Tachometer
4. Fuel meter
5. Clock
6. Multi-function display
7. Quick shift indicator “QS” (if equipped)
1. “SEL/RES” switch
1. Tachometer
2. Tachometer red zone
