Yamaha R7 - Handlebar Switches

Instrument and control functions
4-10
4
Shift timing indicator light bright-
ness
The shift timing indicator light will
come on and stay on until the setting is
confirmed. The brightness level of the
light will change as the level is adjust-
ed.
Use the “RES” switch to select the de-
sired brightness level and push the
“SEL” to confirm it.
EAU1234R

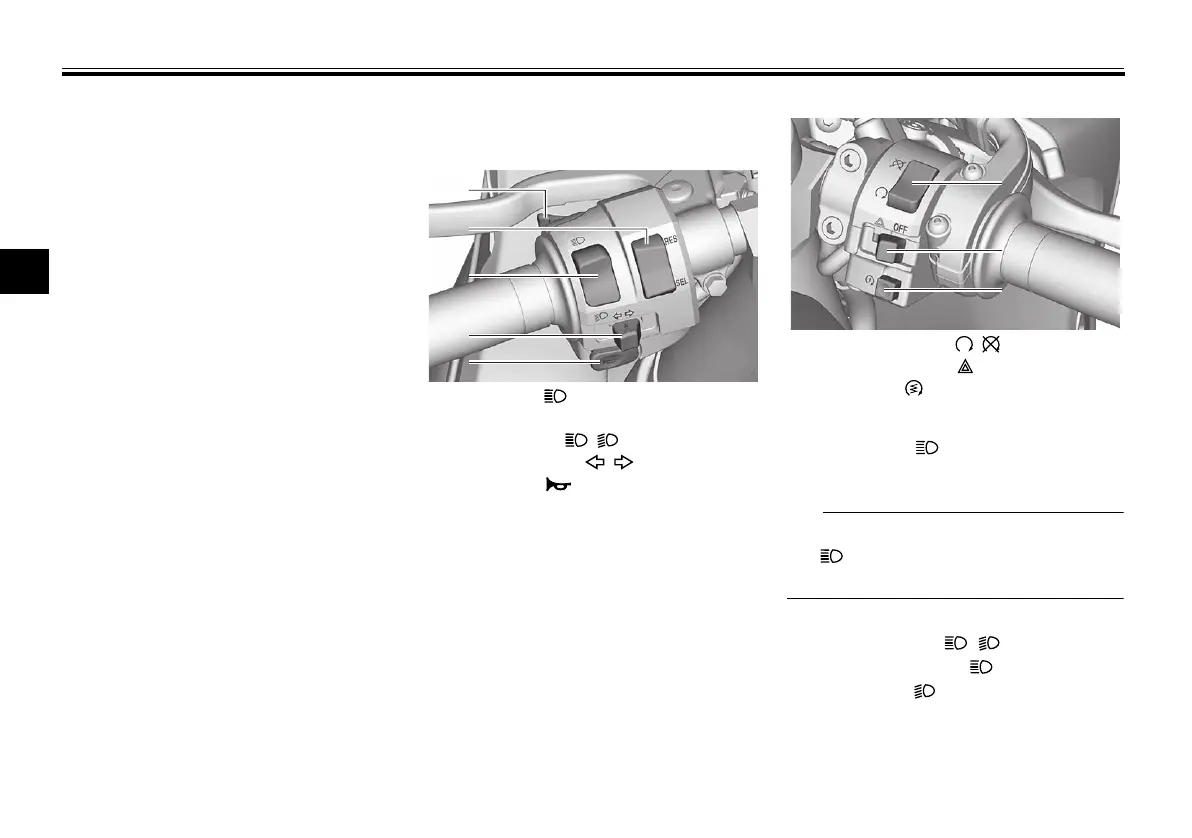

Handlebar switches
Left
Right
EAU12352
Pass switch “ ”
Press this switch to flash the headlight.
TIP
When the dimmer switch is set
to “ ”, the passing switch has no ef-
fect.
EAU12402
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
1. Pass switch “ ”
2. “SEL/RES” switch
3. Dimmer switch “ / ”
4. Turn signal switch “ / ”
5. Horn switch “ ”
111
2
4
5
3
2
4
5
3
1. Engine stop switch “ / ”
2. Hazard switch “OFF/ ”
3. Start switch “ ”
1
1
1
2
3
2
3
