Yamaha R7 User Manual

Periodic maintenance and adjustment
7-32
7
EAU59876
Replacing the fuses
The main fuse and the fuse boxes,
which contain the fuses for the individ-
ual circuits, are located under the rider
seat. (See page 4-17.)
TIP
To access the main fuse, remove the
starter relay cover as shown.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]

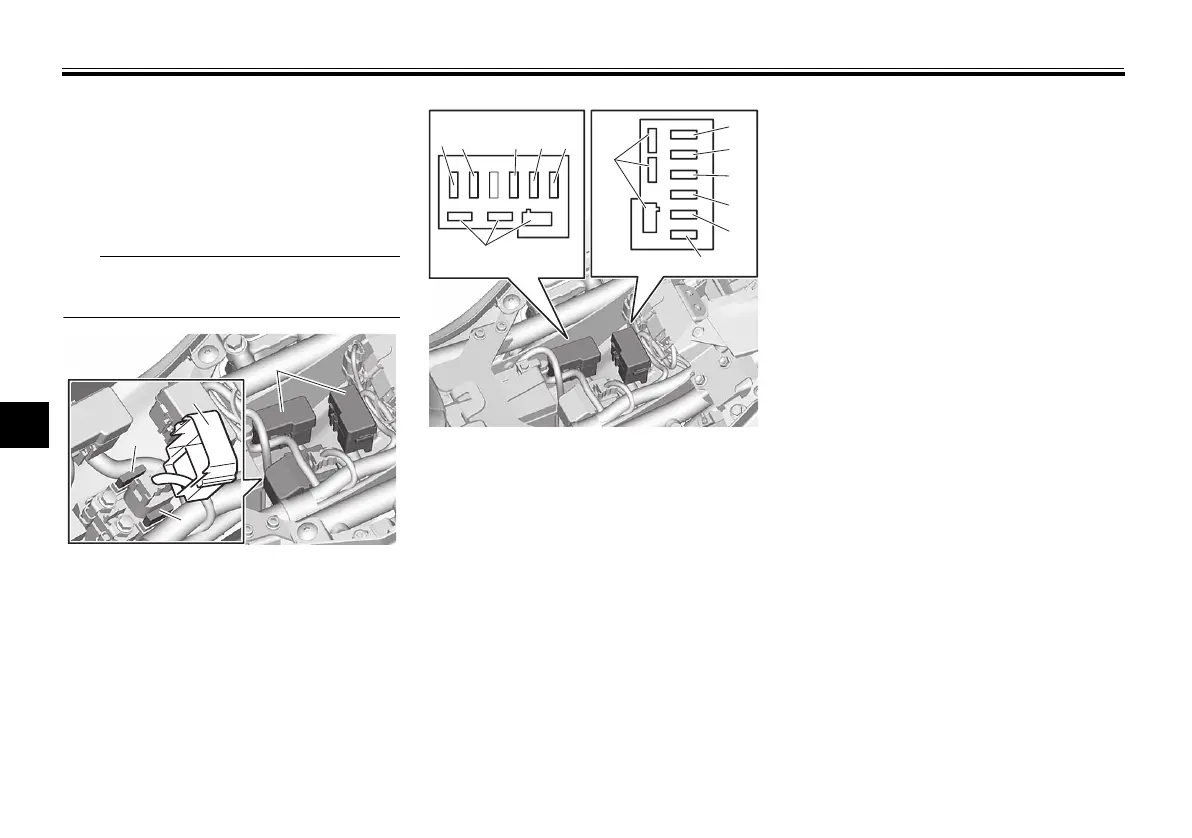

1. Starter relay cover
2. Main fuse
3. Spare main fuse
4. Fuse box
4
4
4
1
2
3
1
2
3
1. ABS solenoid fuse
2. ABS motor fuse
3. Accessory fuse
4. ABS ECU fuse
5. Terminal fuse 1
6. Spare fuse
7. Ignition fuse
8. Signaling system fuse
9. Headlight fuse
10.Fuel injection system fuse
11.Backup fuse
12.Radiator fan motor fuse
5
7
8
9
10
11
12
6
6
4321
UBEB70E0.book Page 32 Friday, February 12, 2021 2:06 PM

Yamaha R7 Specifications

General

Bore x Stroke	80.0mm x 68.6mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Final Drive	Chain
Front Tire	120/70ZR17
Rear Tire	180/55ZR17
Wheelbase	54.9 in
Fuel Capacity	3.4 gal
Curb Weight	414 lb
Engine Type	689cc liquid-cooled, DOHC inline twin-cylinder
Transmission	6-speed
Front Suspension	41mm KYB inverted fork
Rear Suspension	KYB single shock, adjustable preload and rebound damping
Front Brakes	Dual 298mm hydraulic disc
Rear Brakes	245mm hydraulic disc
Maximum Power	54 kW @ 8, 750 rpm
Maximum Torque	67 Nm @ 6, 500 rpm
Height	1, 135 mm
