EWB00190
EBU18382
Clutch lever
The clutch lever is located on the left handlebar
and the ignition circuit cut-off system is incorporat-
ed in the clutch lever holder. To disengage the
clutch, pull the clutch lever toward the handlebar
grip. To engage the clutch, release the clutch lever.
The clutch lever should be pulled rapidly and re-
leased slowly for smooth clutch operation. (See
page 6-1 for a description of the ignition circuit cut-
off system.)
EBU18411
Brake lever
The brake lever is located at the right handlebar
grip. To apply the front brake, pull the brake lever
toward the handlebar grip.
WARNING
POTENTIAL HAZARD
Improper adjustment of the speed limiter and
throttle.
WHAT CAN HAPPEN
The throttle cable could be damaged. Im-
proper throttle operation could result. You
could lose control, have an accident or be in-
jured.
HOW TO AVOID THE HAZARD
Do not turn the adjusting screw out more
than 12 mm (0.47 in). Always make sure the
throttle lever free play is adjusted to 2.0–4.0
mm (0.08–0.16 in). (See page 8-24.)

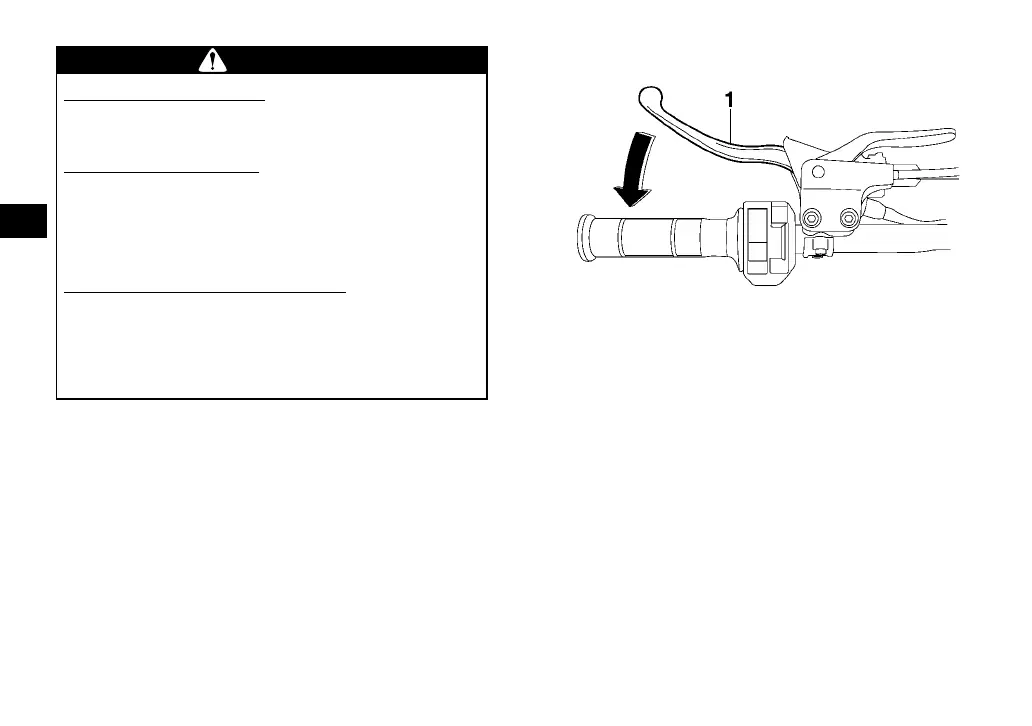

1. Clutch lever
