sion into reverse by pressing down on the shift
pedal, and then release the reverse knob.
NOTE:
When in reverse, the reverse indicator light should
come on. If the indicator light does not come on,
have a Yamaha dealer check the electrical circuit.
4. Check behind you for people or obstacles,
and then release the brake pedal.
5. Open the throttle lever gradually and release
the clutch lever slowly. Continue to watch to
the rear while backing.
EWB00660
EBU20530
Shifting
This ATV has a 5-speed forward and 1-speed re-
verse transmission. The transmission allows you
to control the amount of power you have available
at a given speed or for starting, accelerating, climb-
ing hills, etc.
To shift into neutral, return the throttle lever to the
closed position, apply the clutch, and then repeat-
edly depress the shift pedal until it stops.
When it stops, it will be in first gear. Raise the pedal
slightly to reach the neutral position.

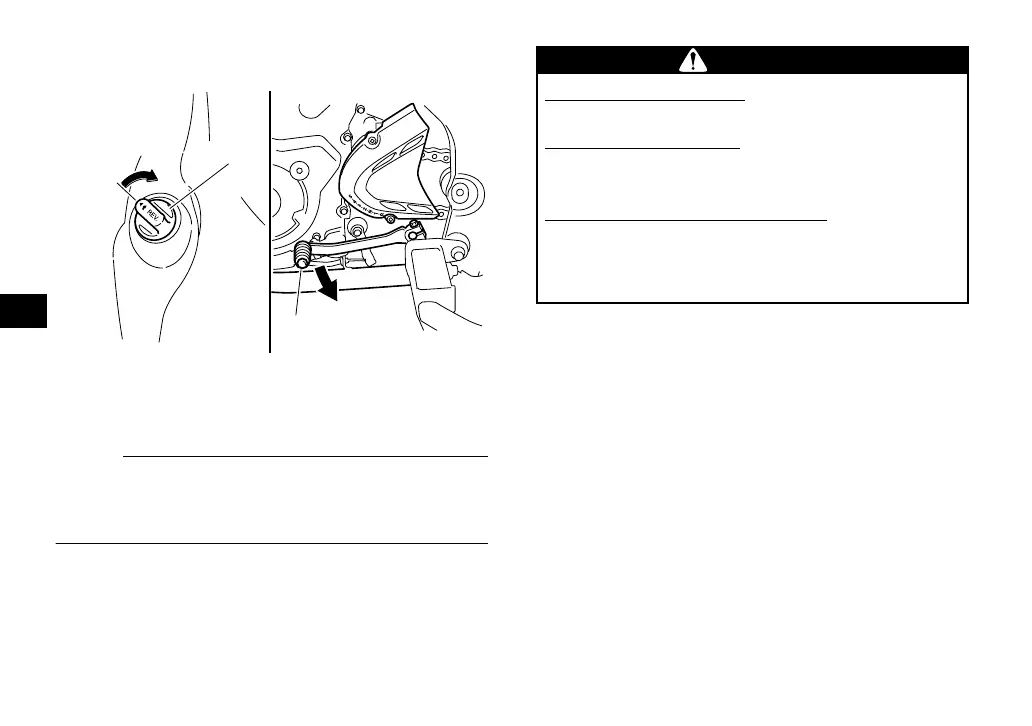

1. Reverse knob “REV”
2. Shift pedal
2
1
WARNING
POTENTIAL HAZARD
Improperly operating in reverse.
WHAT CAN HAPPEN
You could hit an obstacle or even a person
behind you, resulting in serious injury.
HOW TO AVOID THE HAZARD
When you shift into reverse, make sure there
are no people or obstacles behind you. When
it is safe to proceed, go slowly.
