Yamaha RX-397 - Dimensions; Unit Dimensions; Internal View; Component Layout Diagram

7
RX-397
DPX-1200
RX-397
Unit : mm (inch)

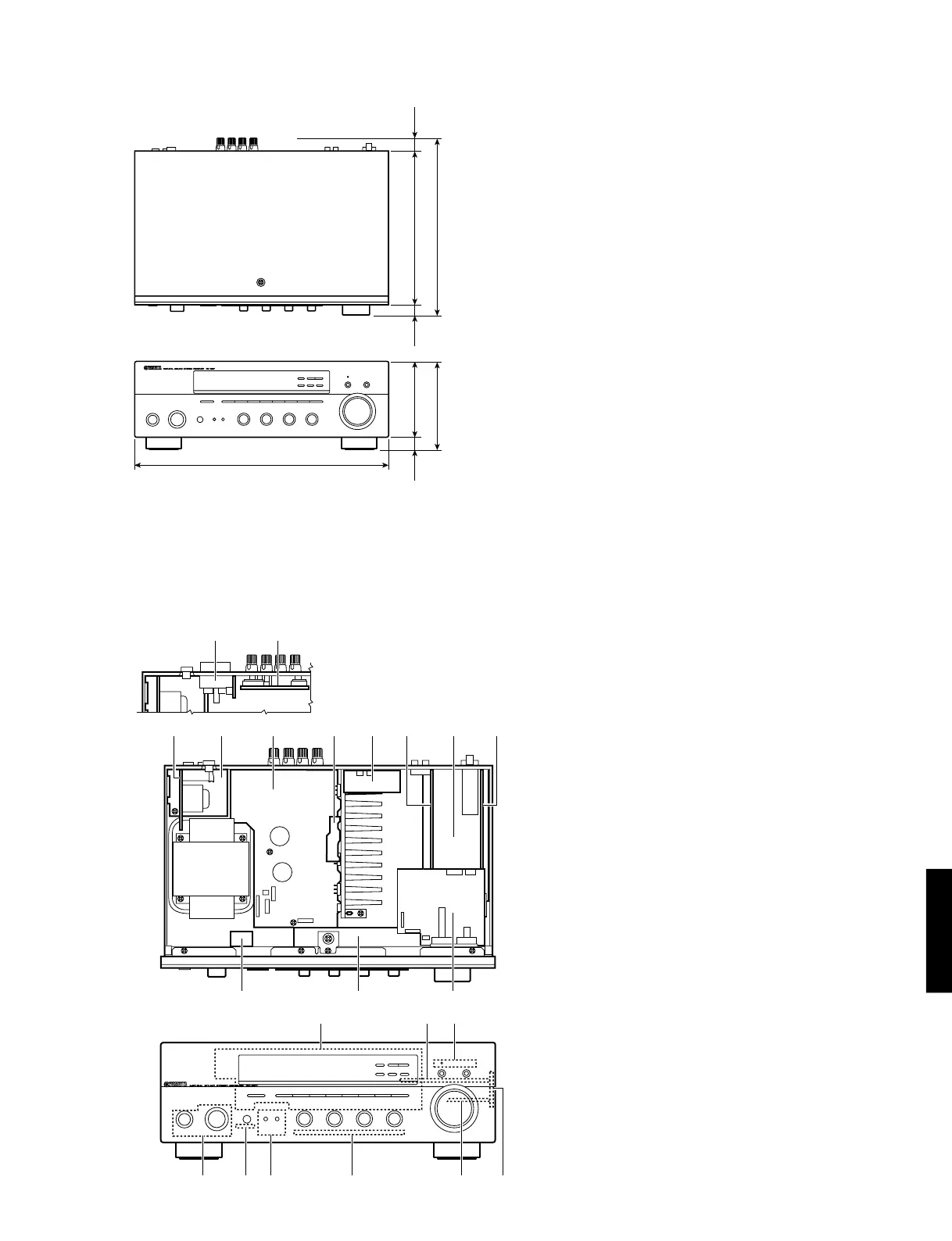

DIMENSIONS
■ INTERNAL VIEW
435 (17-1/8")
151 (5-15/16")
130 (5-1/8") 267 (10-1/2")21
(13/16")
18.5
(3/4")
22.5 (7/8")
308 (12-1/8")
qw
er t yuio!0
!3!2!1
!5
!3!4
!9!7!1 !2 !8!6
q OPERATION (12) P.C.B. (A, G, E, L models)
w MAIN (4) P.C.B. (R, L models)
e MAIN (2) P.C.B.
r MAIN (3) P.C.B.
t MAIN (1) P.C.B.
y MAIN (5) P.C.B.
u FUNCTION (4) P.C.B.
i FUNCTION (1) P.C.B.
o FUNCTION (2) P.C.B.
!0 OPERATION (13) P.C.B.
!1 OPERATION (10) P.C.B.
!2 OPERATION (3) P.C.B.
!3 OPERATION (2) P.C.B.
!4 OPERATION (1) P.C.B.
!5 OPERATION (8) P.C.B.
!6 OPERATION (5) P.C.B.
!7 OPERATION (7) P.C.B.
!8 OPERATION (4) P.C.B.
!9 OPERATION (9) P.C.B.
