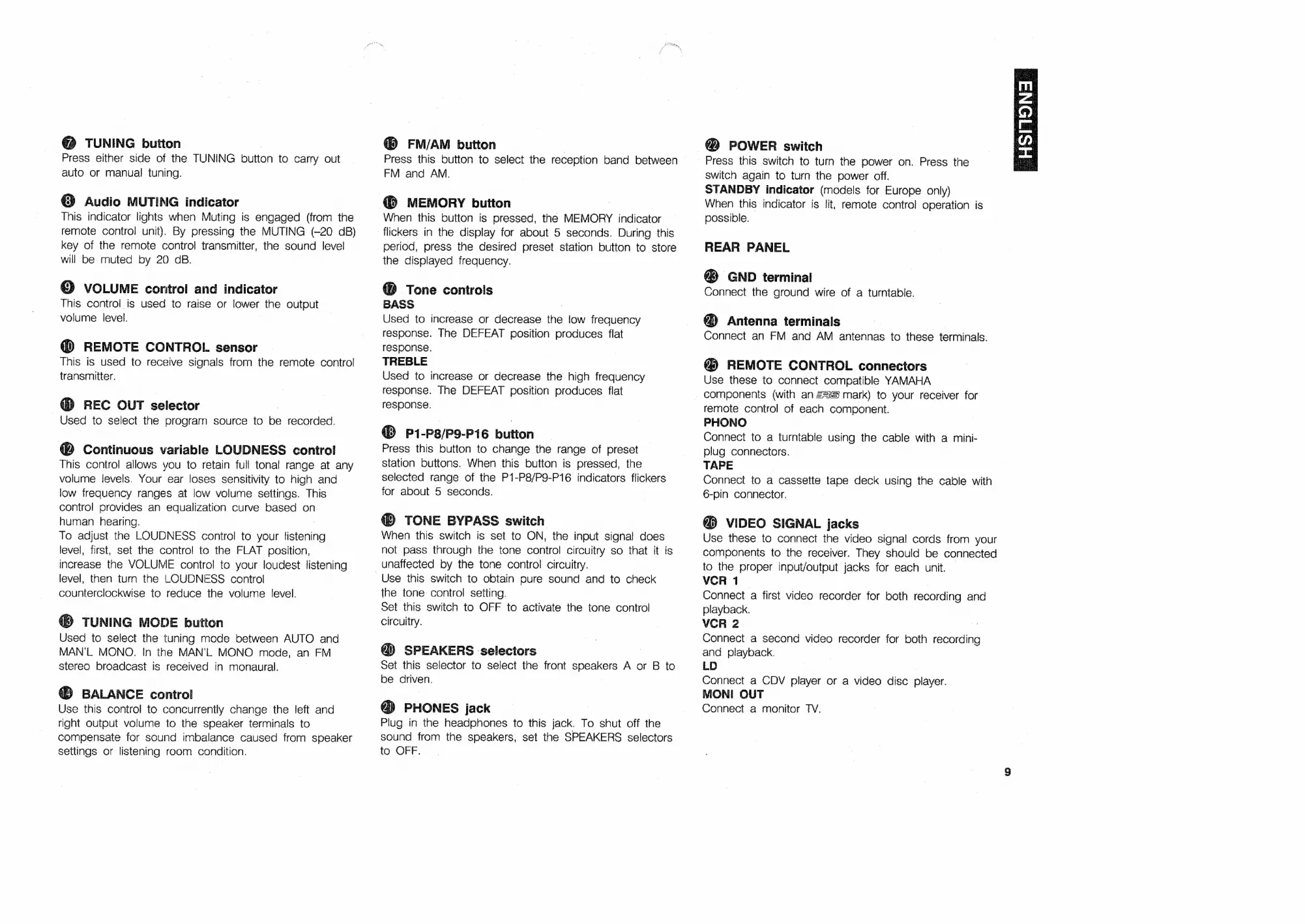

@ TUNING button
Press either side of the TUNING button to carry out
auto or manual tuning.
Q Audio MUTING indicator
This indicator lights when Muting is engaged (from the
remote control unit). By pressing the MUTING (-20 dB)
key of the remote control transmitter, the sound level
will be muted by 20 dB.
Q VOLUME control and indicator
This control is used to raise or lower the output
volume level.
REMOTE CONTROL. sensor
This is used to receive signals from the remote control
transmitter.
@ REC OUT selector
Used to select the program source to be recorded,
© Continuous variable LOUDNESS control
This control allows you to retain full tonal range at any
volume levels. Your ear loses sensitivity to high and
low frequency ranges at low volume settings. This
control provides an equalization curve based on
human hearing.
To adjust the LOUDNESS control to your (бей
level, first, set the control to the FLAT position,
increase the VOLUME control to your loudest listening
level, then tum the LOUDNESS control
counterclockwise to reduce the volume level.
@ TUNING MODE button
Used to select the tuning rnode between AUTO and
МАМЛ. MONO. In the MAN’L MONO mode, an FM
stereo broadcast is received in monaural.
@ BALANCE control
Use this control to concurrently change the left and
right output volume to the speaker terminals to
compensate for sound imbalance caused from speaker
settings or listening room condition.
(9 FM/AM button |
Press this button to select the reception band between
FM and AM.
(D MEMORY button
When this button is pressed, the MEMORY indicator
flickers in the display for about 5 seconds. During this
period, press the desired preset station button to store
the displayed frequency.
@ Tone controls
BASS
Used to increase or decrease the low frequency
response. The DEFEAT position produces flat
response.
TREBLE
Used to increase or decrease the high frequency
response. The DEFEAT position produces flat
response.
P1-P8/P9-P16 button
Press this button to change the range of preset
station buttons. When this button is pressed, the
selected range of the P1-P8/P9-P16 indicators flickers
for about 5 seconds.
@ TONE BYPASS switch
When this switch is set to ON, the input signal does
not pass through the tone control circuitry so that it is
unaffected by the tone control circuitry.
Use this switch to obtain pure sound and to check
ihe tone control setting.
Set this switch to OFF to activate the tone control
circuitry.
SPEAKERS selectors
Set this selector to select the front speakers A or B to
be driven.
@ PHONES jack
Plug in the headphones to this jack. To shut off the
sound from the speakers, set the SPEAKERS selectors
to OFF.
@ POWER switch
Press this switch to turn the power on. Press the
switch again to turn the power off.
STANDBY indicator (models for Europe only)
When this indicator is lit, remote control operation is
possible.
z
ерй
E:
REAR PANEL
@ GND terminal
Connect the ground wire of a turntable.
@ Antenna terminals
Connect an FM and AM antennas to these terminals.
@ REMOTE CONTROL connectors
Use these to connect compatible YAMAHA
components (with an 24% mark) to your receiver for
remote control of each component.
PHONO
Connect to a turntable using the cable with a mini-
plug connectors.
TAPE
Connect to a cassette tape deck using the cable with
6-pin connector.
VIDEO SIGNAL jacks
Use these to connect the video signal cords from your
components to the receiver. They should be connected
to the proper input/output jacks for each unit.
VCR 1
Connect a first video recorder for both recording and
playback.
VCR 2
Connect a second video recorder for both recording
and playback.
LD
Connect a CDV player or a video disc player.
MONI OUT
Connect a monitor TV.
