Yamaha SR-C20A User Manual

Connecting a TV using an HDMI cable (sold separately)
• Before connecting an external subwoofer, be sure to read the following precautions.
– “Precautions for preparation”(p.18)
If a TV is connected via an HDMI cable, the sound bar can be controlled by the HDMI Control function using
the TV’s remote control.
n
Audio Return Channel (ARC)-compatible TV
Connect an Audio Return Channel (ARC) compatible TV using an ARC-compatible HDMI cable (sold
separately).
1 Connect a TV to the sound bar.

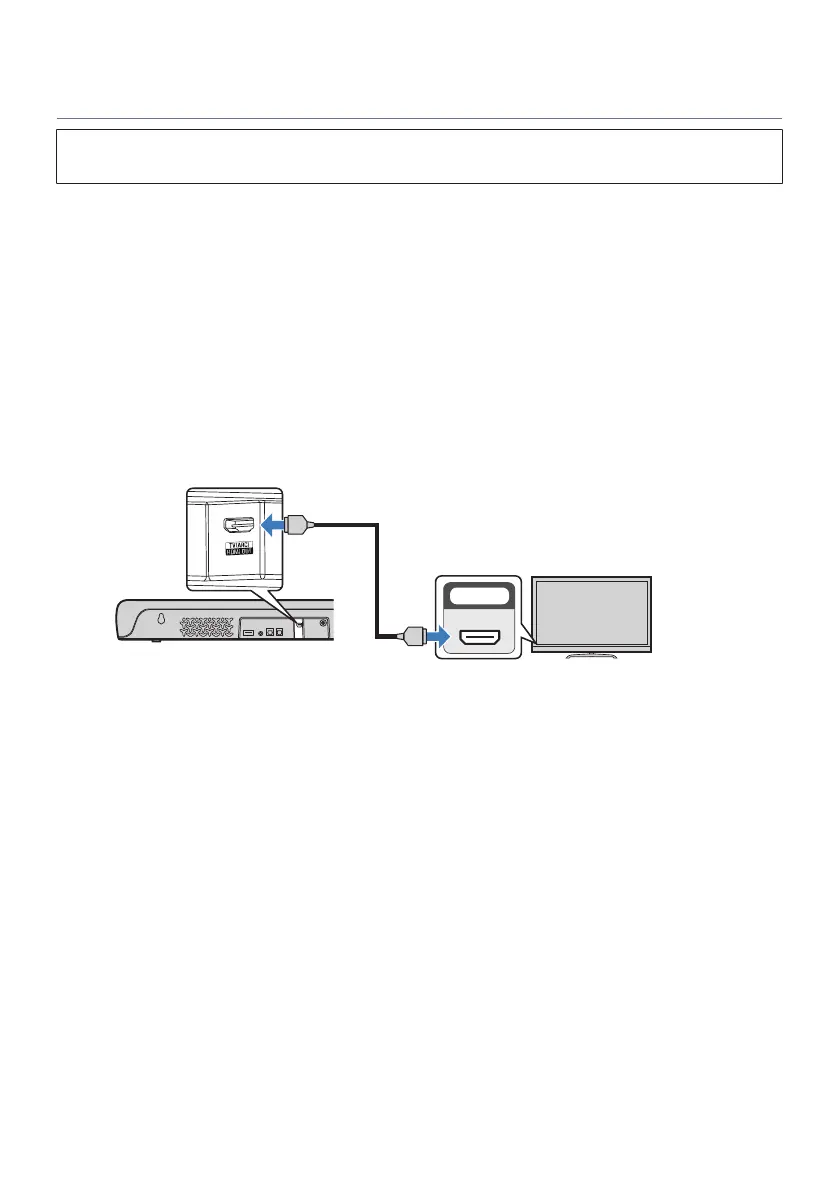

Connect an HDMI cable to the Audio Return Channel compatible jack (labeled as “ARC”) on the
TV.
HDMI IN
ARC
HDMI
HDMIHDMI
HDMI OUT/TV (ARC) jack
Sound bar (rear)
TV
HDMI input
23
PREPARATION > Connecting a TV

Yamaha SR-C20A Specifications

General

Product color	White
TV stand usage	-
Construction type	Assembly kit
Smartphone remote support	Yes
Audio decoders	Dolby Digital, Dolby Pro Logic II
RMS rated power	100 W
Audio output channels	- channels
Tweeter impedance	6 Ω
Soundbar speaker RMS power	40 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	13 W
Cables included	AC, Optical
Subwoofer location	Built-in
Subwoofer frequency range	65 - 230 Hz
Wi-Fi	No
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Digital audio optical in	2

Weight and Dimensions

Depth	94 mm
Width	600 mm
Height	64 mm
Soundbar weight	1800 g
