Personal Studio ST7
Frequency Characteristics
PLAYER 1/2 : 200Hz to 16KHz, includes an
internal equalizer
AUX IN : 20Hz to 16 KHz
Input/Output Levels
PICKUP MUTE 1/2 : –38dBm (0dBm=0.775Vrms)
AUX IN : –10dBm
PHONES 1/2 : –10dBm (150Ω impedance)
LINE OUT : –10dBm (10Ω impedance)
Reverb
Digital Converter : Sampling Frequency 32kHz
AD/DA Converter 15 bits
Mode : 3 types (REHEARSAL ROOM,
CONCERT HALL, CHURCH)
Jacks and Terminals (all mini jack type except DC10-12V)
PICKUP MUTE 1/2 : Pickup Mute exclusive (power
(mono)
supply and line signal combined)
PHONES 1/2 : Impedance 8 to 150Ω
(stereo)
(accommodates headphones)
LINE OUT (stereo) : Output impedance 1kΩ
AUX IN (stereo) : Input impedance 30kΩ
DC10-12V : AC adaptor PA-1D (PA-1 for Great Britain)
Control
MASTER VOLUME, PLAYER 1/2 Volume, AUX IN Volume,
REVERB MODE Button and lamps, REVERB LEVEL, POWER
Switch, Belt Hook
Power Supply
AC adaptor PA-1D
six AAA size 1.5V batteries. (Operation with Manganese batteries
last about 3 hours, Alkaline batteries last about 7 hours.)
Dimensions (W x D x H) 111 x 159 x 41 mm
(4-3/8") x (6-1/4") x (1-5/8")
Weight 250 g (0.55 lbs.) without batteries
* Specifications and design are subject to change without notice.

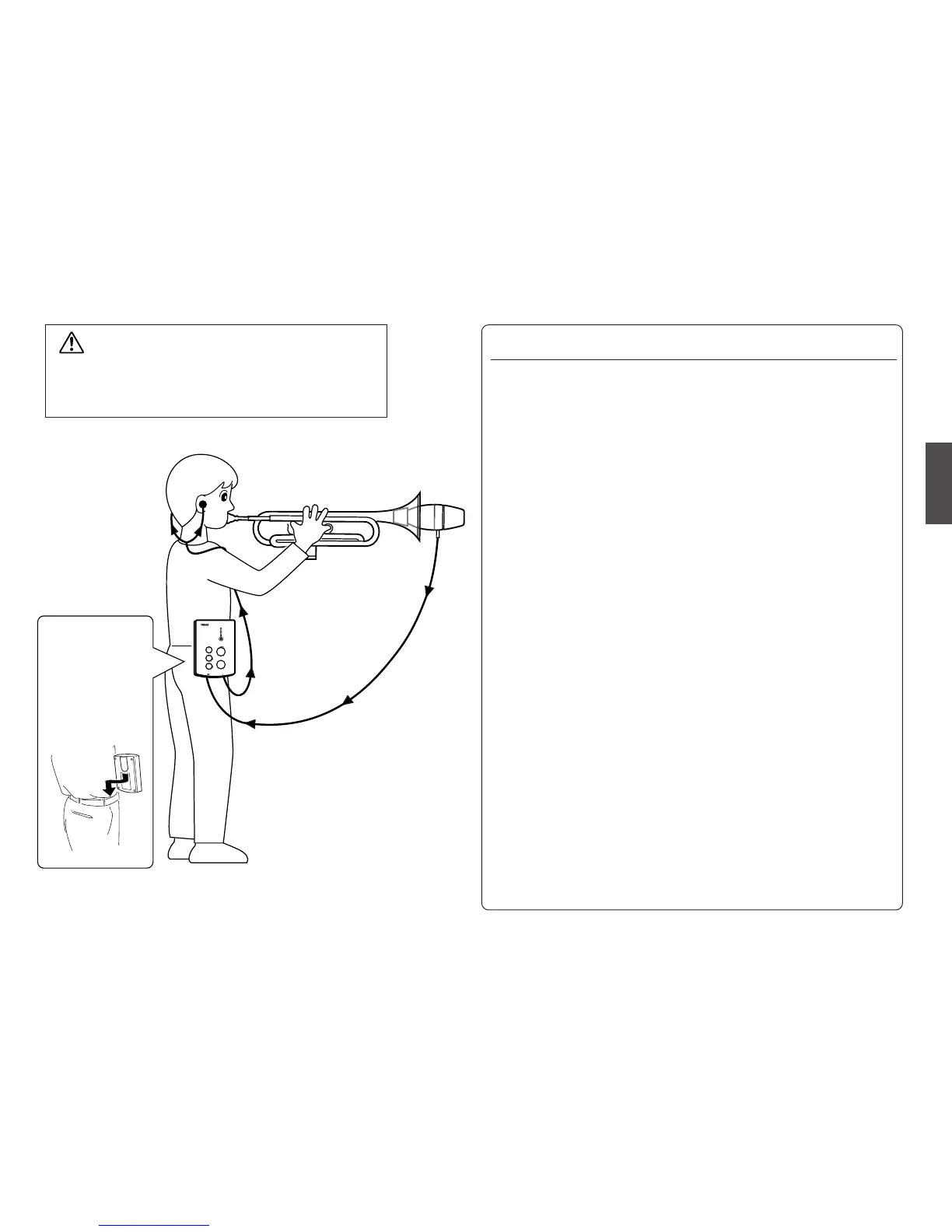

When playing in a
standing position,
the hook on the
back of the ST7 is
convenient for
clipping the unit
onto a belt.
* Pickup Mute, exclusive connection cable and stereo earphone
are not included.
12
Disconnecting the cable while the power
is ON may result in damage to the unit.
The sudden noise may also may result in
hearing impairments.
PLAYER
Signal path
From PHONES 1
To PICKUP MUTE 1
To Next Page
