INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
3
4
5
6
7
8
9
EAU42532
“RESET” switch
This switch is used to perform selec-
tions in the tripmeter, to set the clock,
and to set the brightness mode of the
multi-function meter unit.
See “Multi-function meter unit” on page
3-4 for detailed information.
EAU12820

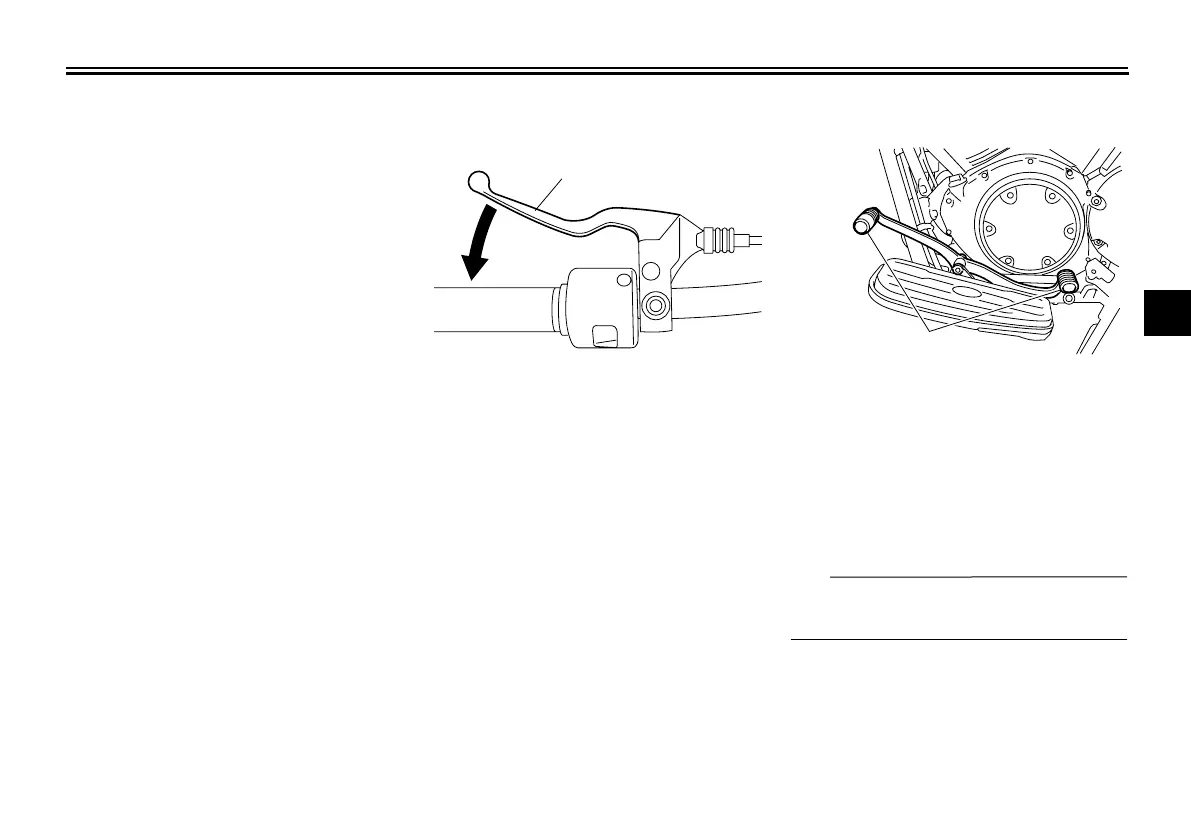

Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-16.)
EAU12880
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
TIP
Use your toes or heel to shift up and
your toes to shift down.
1. Clutch lever
1
1. Shift pedal
