Replacing a license plate light
bulb
1. Remove the license plate light unit
by removing the nuts, washers
and rubber dampers.
2. Remove the license plate light lens
by removing the nuts and wash-
ers.
3. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the license plate light lens
by installing the washers and the
nuts.
6. Install the license plate light unit by
installing the rubber dampers,
washers and the nuts.

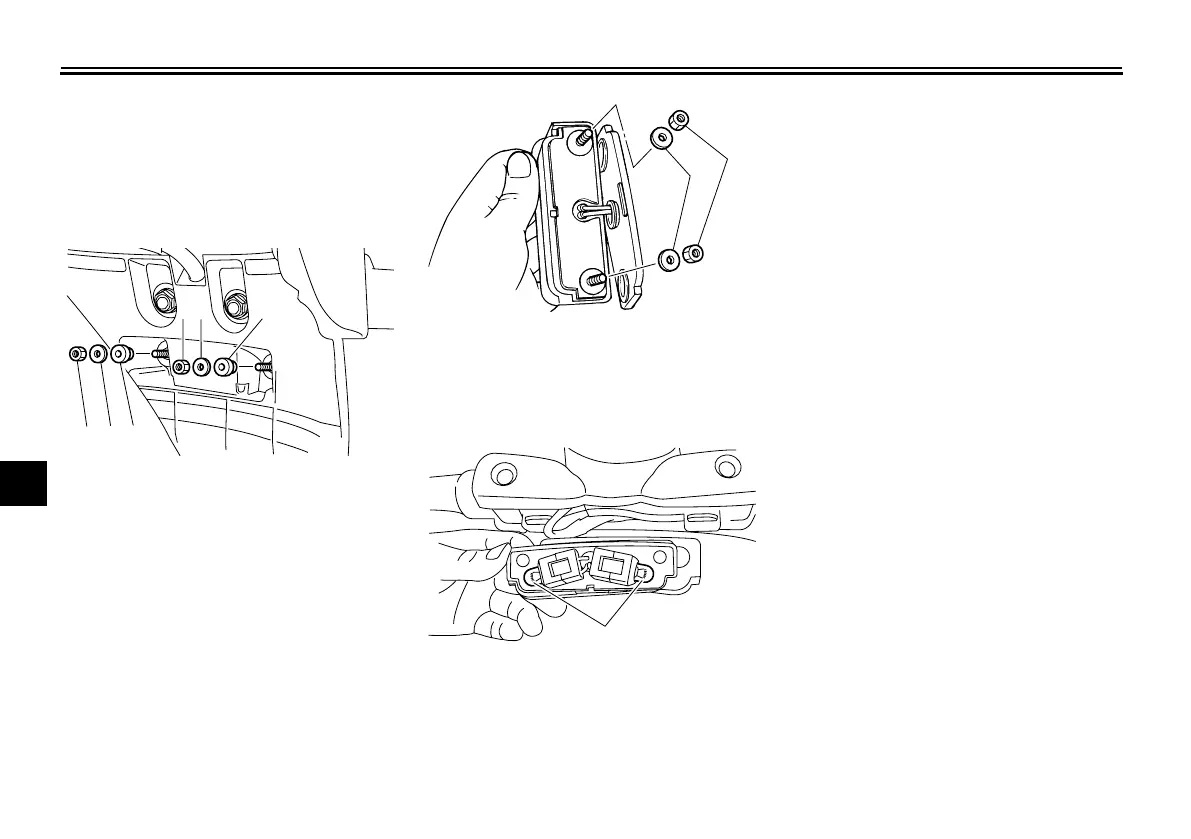

1. Nut
2. Washer
3. Rubber damper
1
2
3
1
3
2
1. Nut
2. Washer
1. License plate light bulb
