Yamaha STAR XVS950 - Replacing the Fuses

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
1
2
3
4
5
6
7
8
9
EAU47132
Replacing the fuses
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the rider seat.
(See page 3-13.)
TIP
To access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire. [EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.

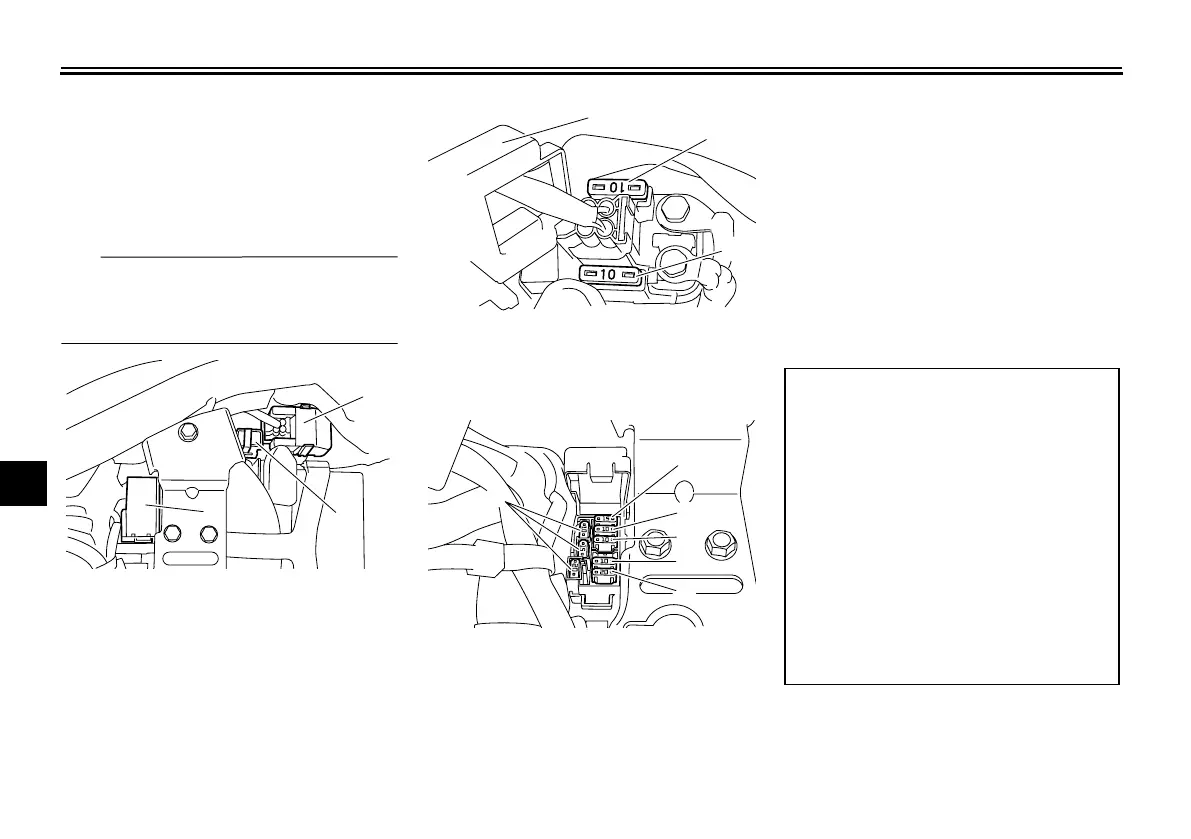

1. Starter relay cover
2. Main fuse
3. Fuse box
2
3
1
1. Starter relay cover
2. Spare fuse
3. Fuel injection system fuse
1. Ignition fuse
2. Signaling system fuse
3. Parking lighting fuse
4. Backup fuse
5. Headlight fuse
6. Spare fuse
3
2
1
1
2
3
4
5
6
Specified fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
15.0 A
Parking lighting fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Backup fuse:
10.0 A
