Yamaha STAR XVS950 - Replacing a Turn Signal Light Bulb

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
2
3
4
5
6
7
8
9
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break. [ECA10681]
EAU24212
Replacing a turn signal light
bulb
1. Remove the turn signal lens by re-
moving the screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break. [ECA10681]

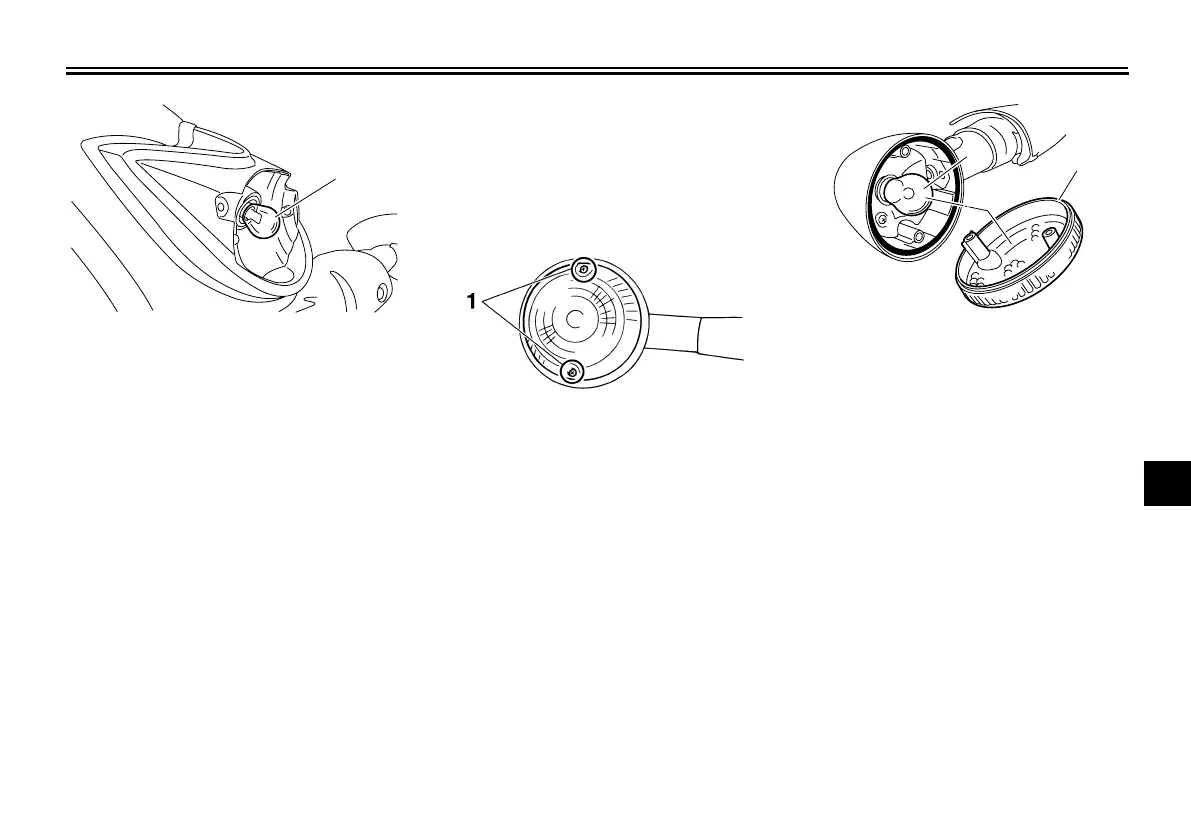

1. Tail/brake light bulb
1
1. Screw
1. Turn signal light lens
2. Turn signal light bulb
2
1
