PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
2
3
4
5
6
7
8
9
TIP
An oil filter wrench is available at a
Yamaha dealer.

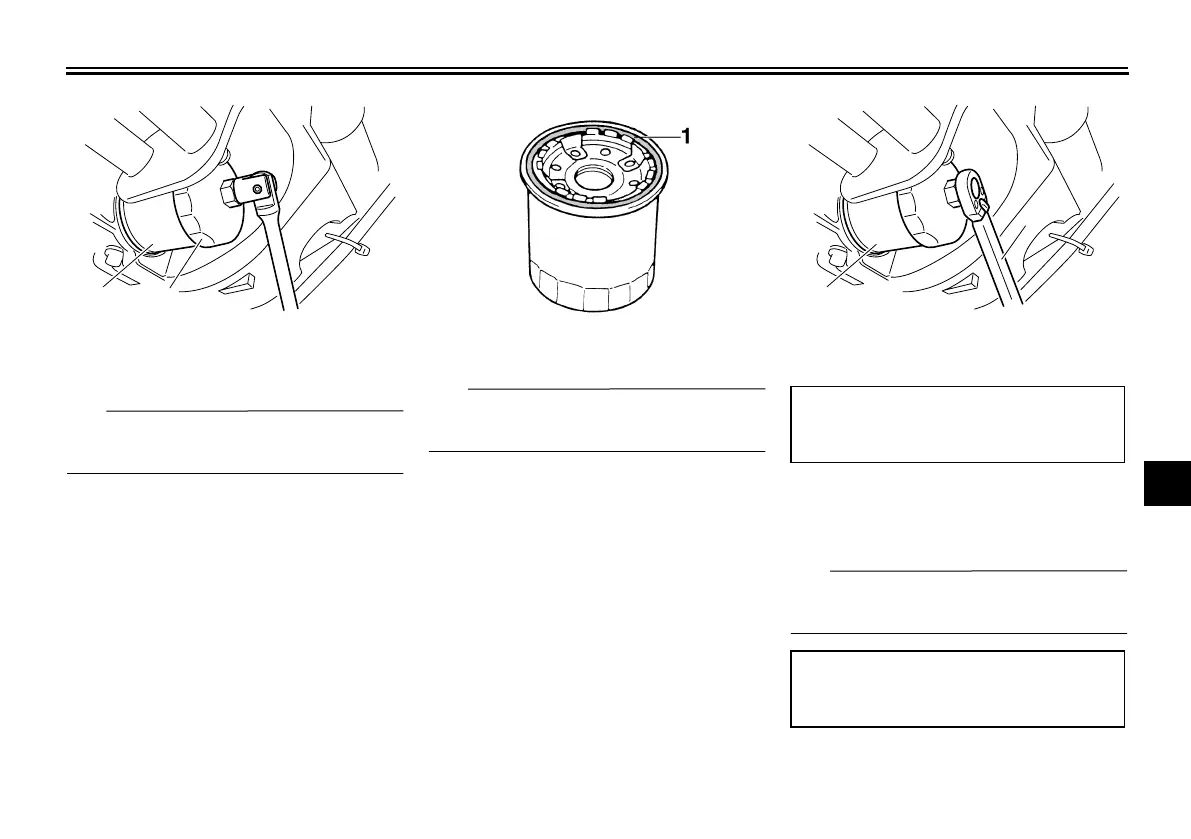

5. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
TIP
Make sure that the O-ring is properly
seated.
6. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
7. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
TIP
Check the washer for damage and re-
place it if necessary.
8. Refill with the specified amount of
the recommended engine oil, and
1. Oil filter wrench
2. Oil filter cartridge
1
2
1. O-ring
1. Torque wrench
2. Oil filter cartridge
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 30 ft·lbf)
To Next Page
