Yamaha SUPER TENERE XT1200Z User Manual

DESCRIPTION
2-3
2
EAU10431

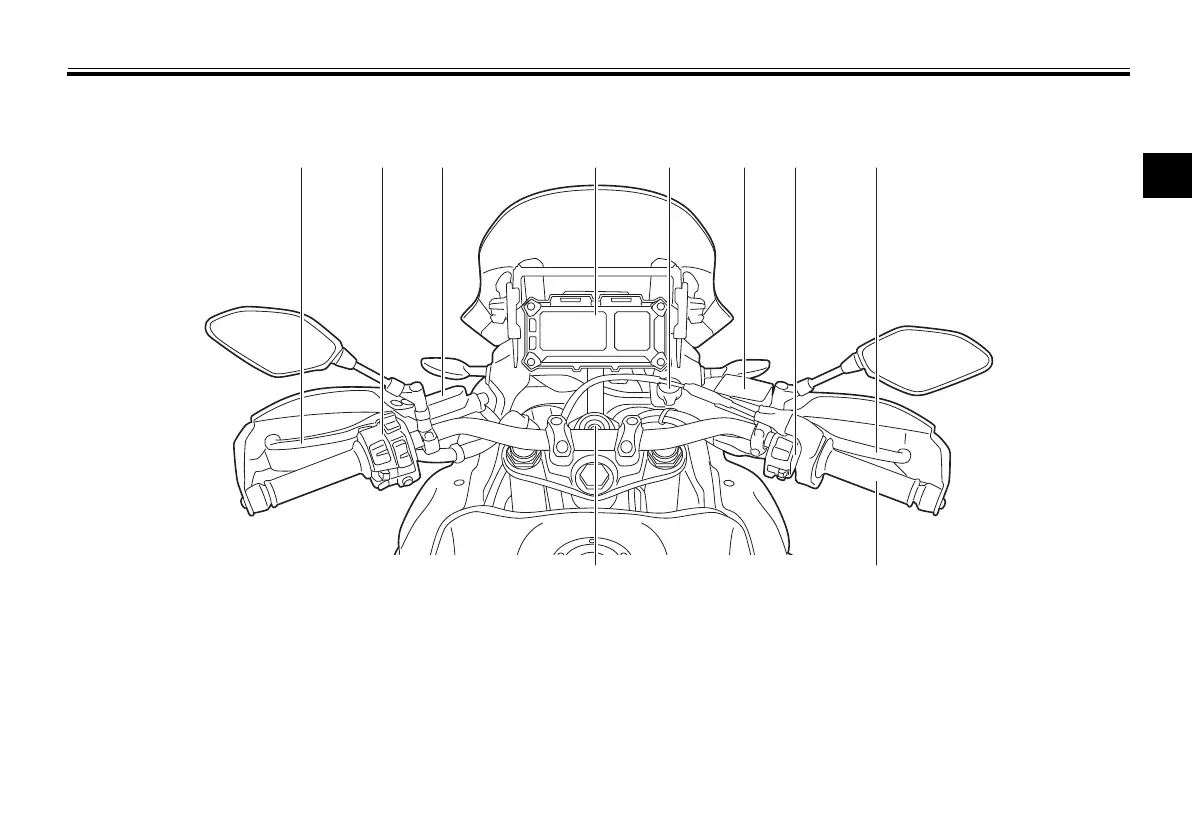

Controls and instruments
1
9
10
2 3 4 5 6 7 8
1. Clutch lever (page 3-24)
2. Left handlebar switches (page 3-22)
3. Clutch fluid reservoir (page 6-23)
4. Multi-function meter unit (page 3-10)
5. Auxiliary DC jack (page 3-42)
6. Front brake fluid reservoir (page 6-23)
7. Right handlebar switches (page 3-22)
8. Brake lever (page 3-25)
9. Throttle grip (page 6-17)
10.Main switch/steering lock (page 3-2)
U2BSE0E0.book Page 3 Tuesday, September 17, 2013 8:55 AM

Yamaha SUPER TENERE XT1200Z Specifications

General

Displacement	1199 cc
Bore x Stroke	98.0 mm x 79.5 mm
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Starter	Electric
Final Drive	Shaft
Rear Suspension	Monoshock, adjustable preload and rebound damping
Fuel Capacity	23 liters
Seat Height	845 mm
Wet Weight	261 kg
Width	980 mm
Engine Type	Liquid-cooled, DOHC, 4-valve
Transmission	6-speed
Front Suspension	43mm telescopic fork, adjustable preload and rebound damping
Front Brakes	Dual 310mm discs, ABS
Rear Brakes	282mm disc, ABS
Front Tire	110/80R19
Rear Tire	150/70R17
