Yamaha SUPER TENERE XT1200Z User Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-37
3
TIP
Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above
specifications due to small differences
in production, the actual number of
clicks always represents the entire ad-
justing range. To obtain a precise ad-
justment, it would be advisable to
check the number of clicks of each
damping force adjusting mechanism
and to modify the specifications as
necessary.
EAU49692
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing knob and a rebound damping force
adjusting knob.
NOTICE
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Spring preload
To increase the spring preload and
thereby harden the suspension, turn
the adjusting knob in direction (a). To
decrease the spring preload and there-
by soften the suspension, turn the ad-
justing knob in direction (b). NOTICE:
To avoid damaging the adjusting
knob, do not turn the adjusting knob
while sitting on the vehicle.
[ECA20110]
TIP
 Align the appropriate mark on the
adjusting mechanism with the
matching edge.

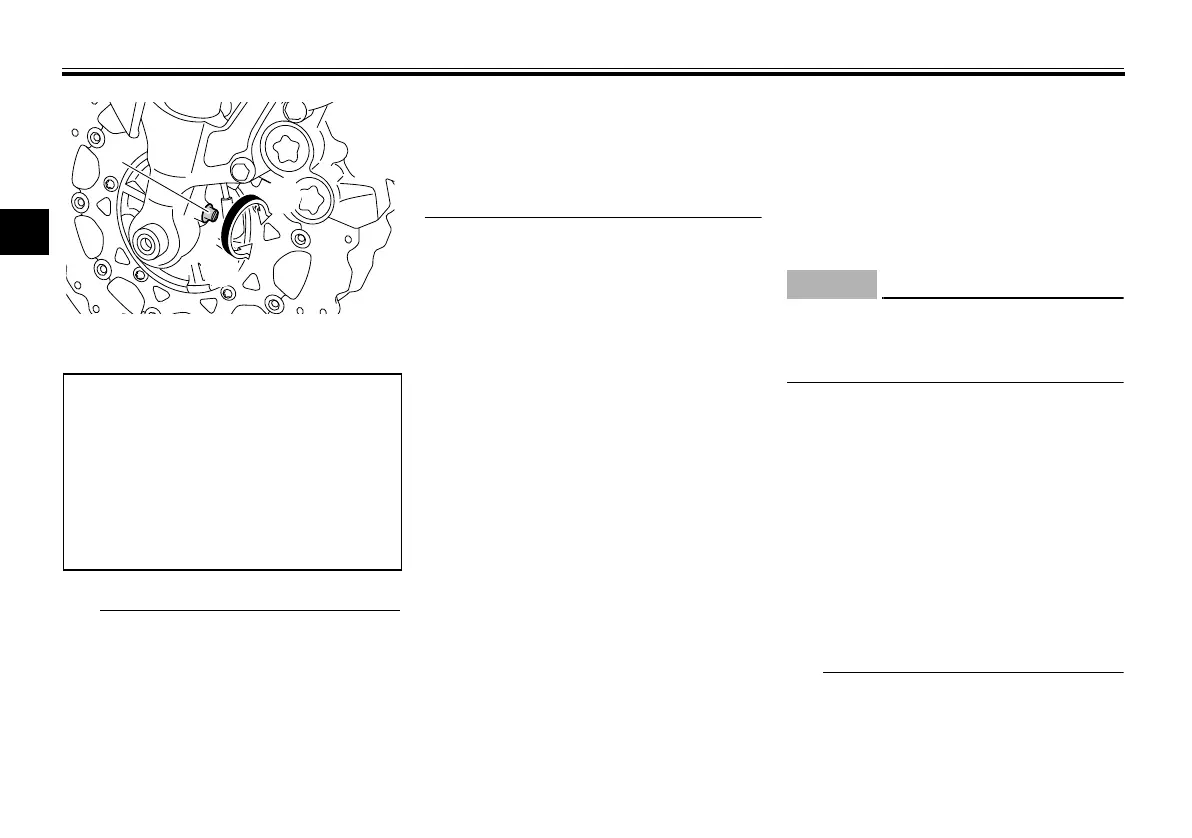

1. Compression damping force adjusting
screw
Compression damping setting:
Minimum (soft):
13 click(s) in direction (b)*
Standard:
6 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully
turned in direction (a)
1
(a)
(b)
U2BSE0E0.book Page 37 Tuesday, September 17, 2013 8:55 AM

Yamaha SUPER TENERE XT1200Z Specifications

General

Displacement	1199 cc
Bore x Stroke	98.0 mm x 79.5 mm
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Starter	Electric
Final Drive	Shaft
Rear Suspension	Monoshock, adjustable preload and rebound damping
Fuel Capacity	23 liters
Seat Height	845 mm
Wet Weight	261 kg
Width	980 mm
Engine Type	Liquid-cooled, DOHC, 4-valve
Transmission	6-speed
Front Suspension	43mm telescopic fork, adjustable preload and rebound damping
Front Brakes	Dual 310mm discs, ABS
Rear Brakes	282mm disc, ABS
Front Tire	110/80R19
Rear Tire	150/70R17
