Yamaha SUPER TENERE XT1200Z User Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-42
3
EAU49453
Auxiliary DC jack
WARNING
EWA14361
To prevent electrical shock or short-
circuiting, make sure that the cap is
installed when the auxiliary DC jack
is not being used.
NOTICE
ECA15432
The accessory connected to the
auxiliary DC jack should not be used
with the engine turned off, and the
load must never exceed 30 W (2.5 A),
otherwise the fuse may blow or the
battery may discharge.
This vehicle is equipped with an auxil-
iary DC jack.
A 12-V accessory connected to the
auxiliary DC jack can be used when the
key is in the “ON” position and should
only be used when the engine is run-
ning.
To use the auxiliary DC jack
1. Turn the key to “OFF”.
2. Remove the auxiliary DC jack cap.
3. Turn the accessory off.
4. Insert the accessory plug into the
auxiliary DC jack.
5. Turn the key to “ON”, and then
start the engine. (See page 5-1.)
6. Turn the accessory on.

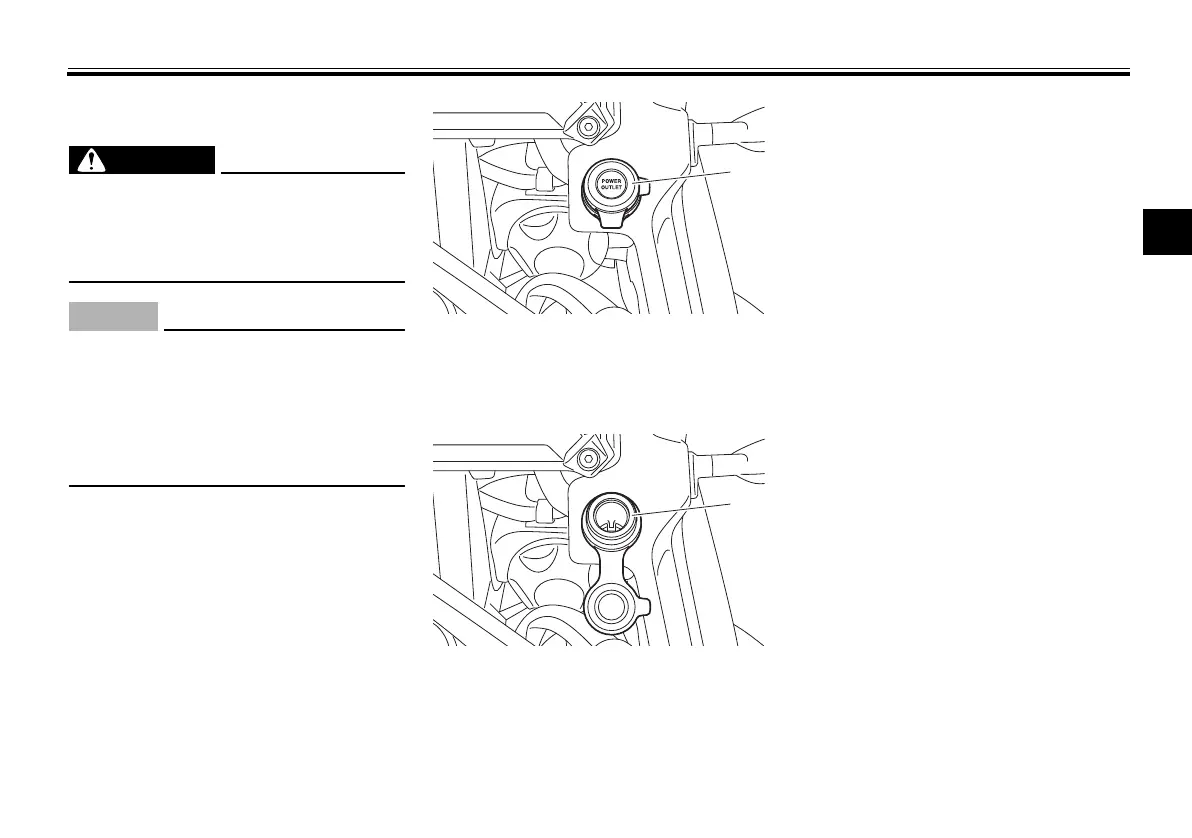

1. Auxiliary DC jack cap
1. Auxiliary DC jack
1
1
U2BSE0E0.book Page 42 Tuesday, September 17, 2013 8:55 AM

Yamaha SUPER TENERE XT1200Z Specifications

General

Displacement	1199 cc
Bore x Stroke	98.0 mm x 79.5 mm
Compression Ratio	11.0:1
Fuel System	Fuel Injection
Ignition	TCI: Transistor Controlled Ignition
Starter	Electric
Final Drive	Shaft
Rear Suspension	Monoshock, adjustable preload and rebound damping
Fuel Capacity	23 liters
Seat Height	845 mm
Wet Weight	261 kg
Width	980 mm
Engine Type	Liquid-cooled, DOHC, 4-valve
Transmission	6-speed
Front Suspension	43mm telescopic fork, adjustable preload and rebound damping
Front Brakes	Dual 310mm discs, ABS
Rear Brakes	282mm disc, ABS
Front Tire	110/80R19
Rear Tire	150/70R17
