FRONT WHEEL AND FRONT BRAKE (TT-R125E)
EC500000
CHASSIS
FRONT WHEEL AND FRONT BRAKE (TT-R125E)
Extent of removal: 1 Front wheel removal 2 Wheel bearing removal
3 Brake shoe plate assembly removal and disassembly

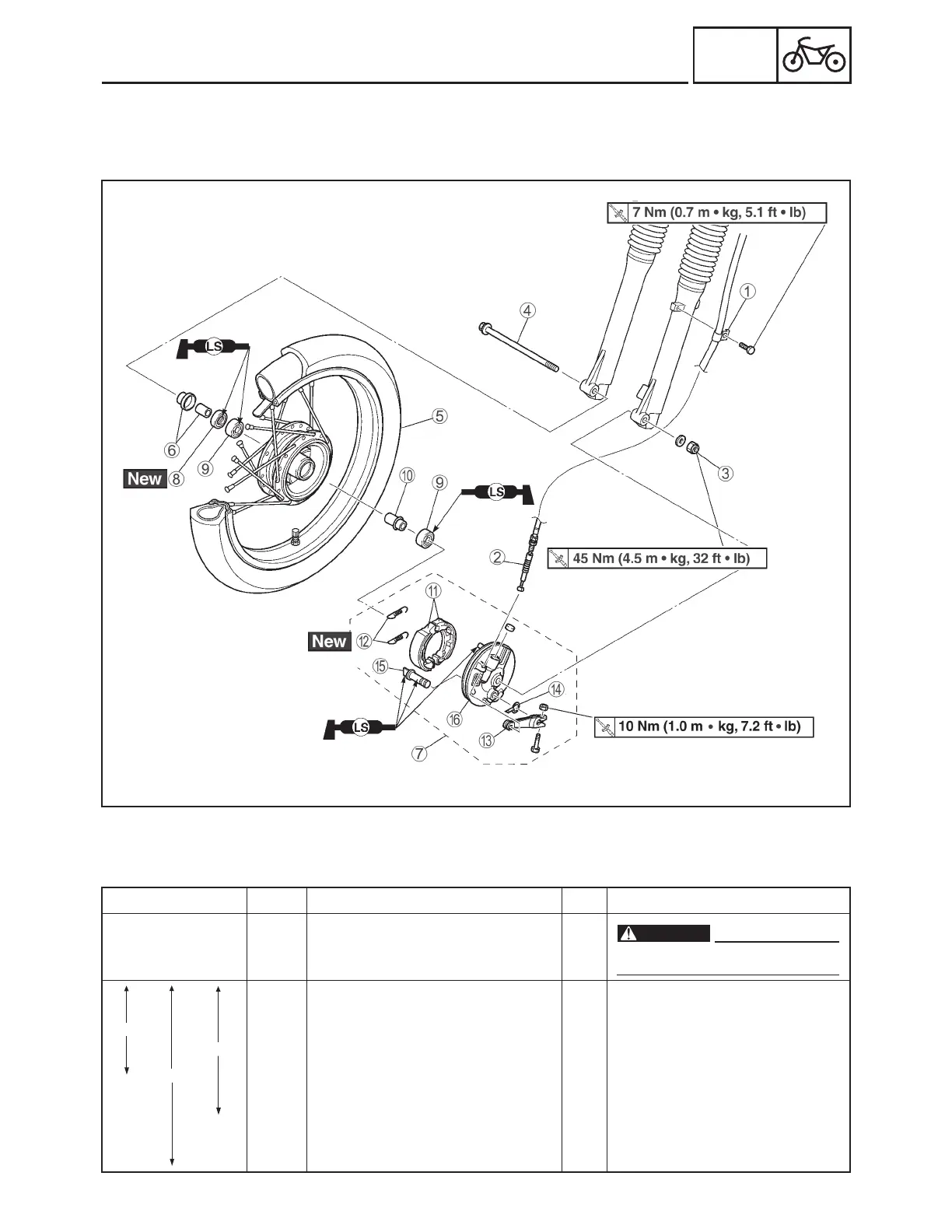

1 Brake cable holder 1
2 Brake cable 1
3 Axle nut 1
4 Wheel axle 1
5 Front wheel 1
6 Collar set 1
7 Brake shoe plate assembly 1
8 Oil seal 1
9 Wheel bearing 2
10 Spacer 1
Extent of removal Order Part name Q’ty Remarks
FRONT WHEEL AND DRUM BRAKE
Hold the machine by placing the
suitable stand under the engine.
Preparation for
removal
Support the machine securely so
there is no danger of it falling over.
Disconnect at the lever side, first.
Refer to "REMOVAL POINTS".
WARNING
1
2
3
