3 - 18
INSP
ADJ
DRIVE CHAIN SLACK ADJUSTMENT/
FRONT FORK INSPECTION/REAR SHOCK ABSORBER INSPECTION
OTE:
Turn the adjuster so that the chain is in line
with the sprocket, as viewed from the rear.
CAUTION:
Too small chain slack will overload the
engine and other vital parts; keep the
slack within the specified limits.
• Tighten the wheel axle nut while pushing
down the drive chain.
T
R
.
.
Axle nut:
60 Nm (6.0 m • kg, 43 ft • lb)
• Tighten the locknuts.
T
R
.
.
Locknut:
7 Nm (0.7 m • kg, 5.1 ft • lb)
EC36C000

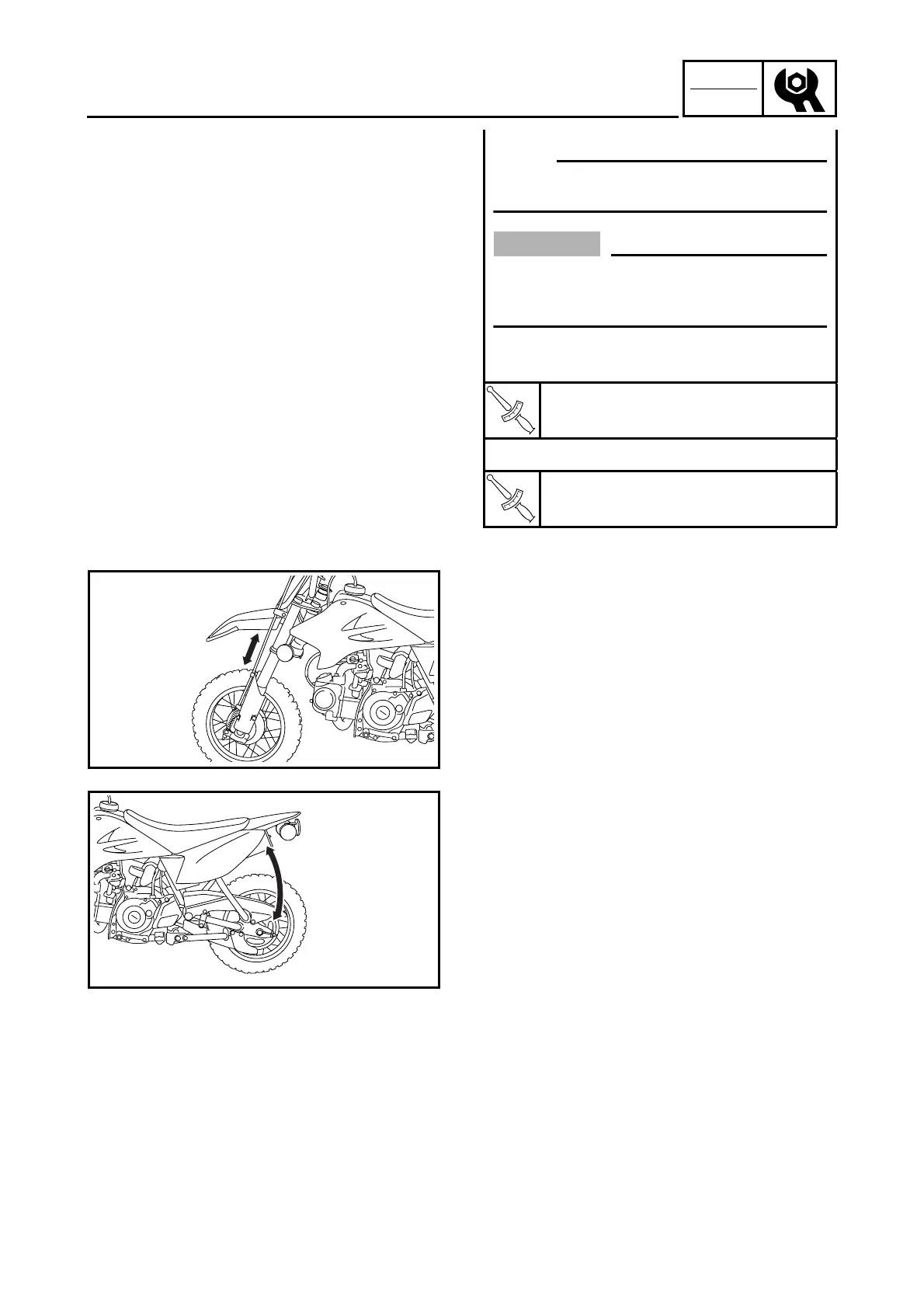

FRONT FORK INSPECTION
1. Inspect:
• Front fork smooth action
Operate the front brake and stroke the
front fork.
Unsmooth action → Repair or replace.
EC36K000
REAR SHOCK ABSORBER INSPECTION
1. Inspect:
• Swingarm smooth action
Abnormal noise/unsmooth action →
Grease the pivoting points or repair the
pivoting points.
Damage/oil leakage → Replace.
