4 - 42
ENG

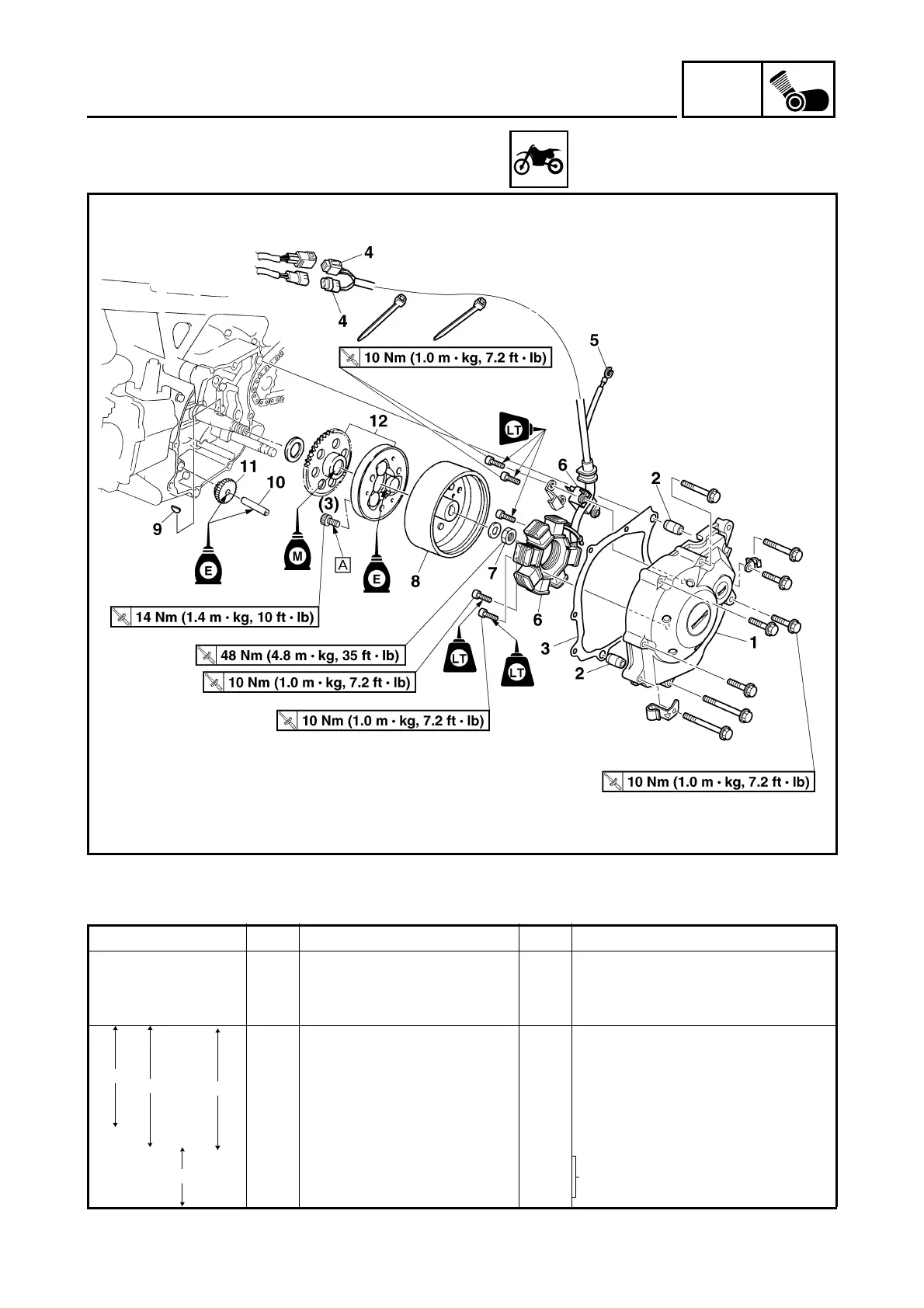

AC MAGNETO AND STARTER CLUTCH
AC MAGNETO AND STARTER CLUTCH
È
Stake
Extent of removal:
1
Crankcase cover (left) removal
2
Pickup coil/stator removal
3
Rotor removal
4
Starter clutch/wheel gear removal
Extent of removal Order Part name Qty Remarks
AC MAGNETO AND STATOR
REMOVAL
Preparation for removal Seat assembly Refer to FRONT FENDER, SEAT
ASSEMBLY AND FUEL TANK section.
1 Crankcase cover (left) 1
2 Dowel pin 2
3 Gasket 1
4 AC magneto coupler 2
5 Neutral switch lead 1
6 Pickup coil/stator assembly 1
7 Rotor nut 1
Use special tool.
Refer to REMOVAL POINTS”.
8 Rotor 1
9 Woodruff key 1
2
1
3
4
