CYLINDER HEAD
CYLINDER HEAD

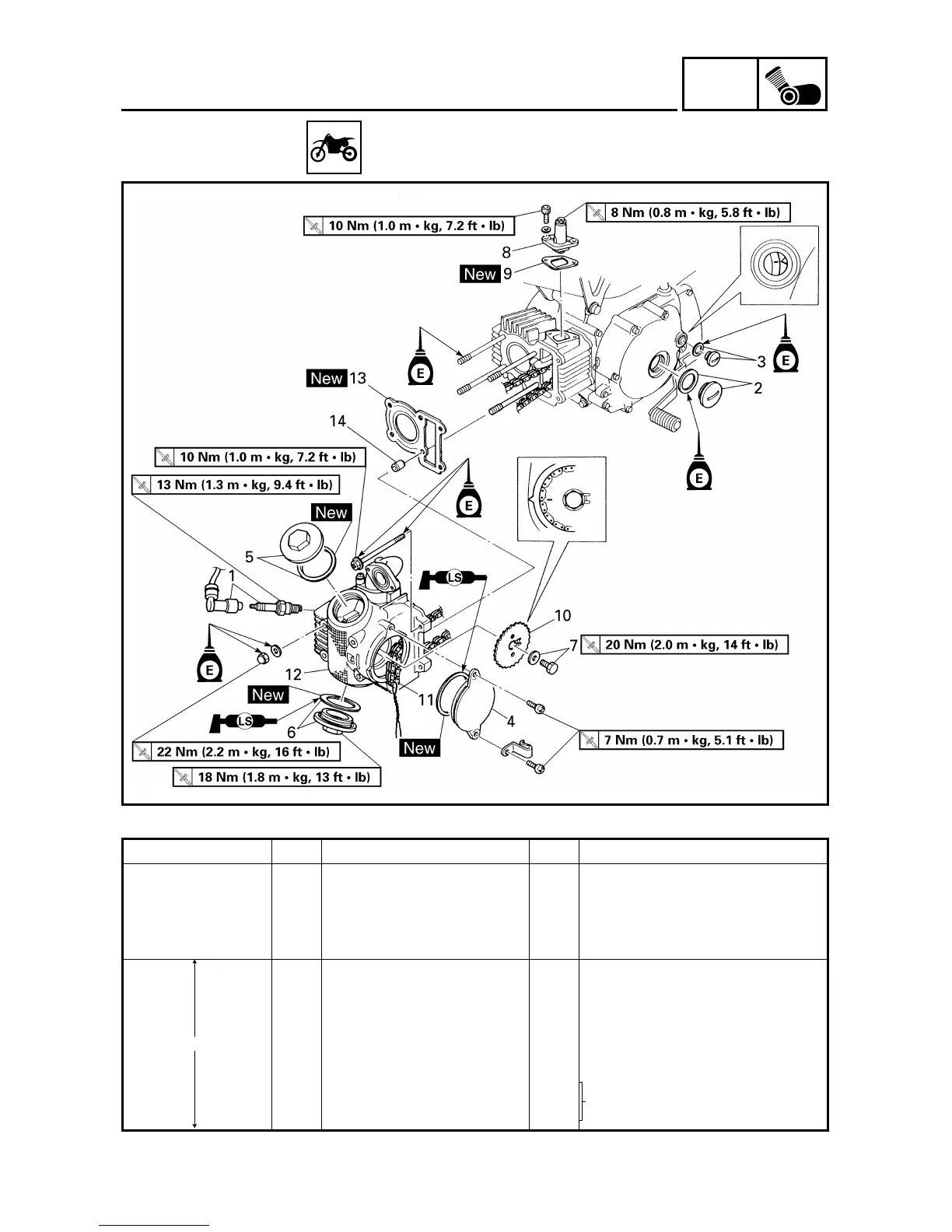

Extent of removal: 1 Cylinder head removal
Extent of removal Order Part name Q’ty Remarks
CYLINDER HEAD REMOVAL
Preparation for removal Seat, fuel tank and rear fender
Exhaust pipe
Carburetor Refer to “CARBURETOR” section.
Air filter case and starter lever
1 Plug cap/spark plug 1/1
2 Crankshaft end cover/O-ring 1/1
3 Timing plug/O-ring 1/1
4 Camshaft sprocket cover/O-ring 1/1
5 Tappet cover (intake)/O-ring 1/1
6 Tappet cover (exhaust)/O-ring 1/1
7 Camshaft sprocket bolt/washer 1/1
Refer to “REMOVAL POINTS”.8 Timing chain tensioner 1
9 Gasket 1
1
