Periodic maintenance and adjustment
70
dealer charge your battery. Using a con-
ventional battery charger will damage
the battery.
● Do not charge the battery quickly.
ESU12952
Replacing a fuse
WARNING
EWS00550
Be sure to use the specified fuse. A wrong
fuse could cause electrical system dam-
age or A FIRE HAZARD.
NOTICE
ECS00631
Be sure to turn the main switch to the off
position and disconnect the negative bat-
tery lead to prevent accidental short-cir-
cuiting.
1. Remove the shroud, the left and right
side covers, and the top cover. (See page
42 for removal procedures.)
2. Remove the headlight unit bolt on each
side of the snowmobile.
3. Unhook the headlight unit as shown, then
lift it up and move it forward, away from
the handlebar. NOTICE: Be careful not
to scratch the snowmobile when mov-
ing the headlight unit.
[ECS00920]
4. Loosen the joint clamp bolts.
5. Move the headlight unit rearward, away
from the air filter case cover. NOTICE: Be
careful not to scratch the snowmobile
when moving the headlight unit.
[ECS00920]
6. Unhook the air filter case fastener and
disconnect the air temperature sensor
coupler.

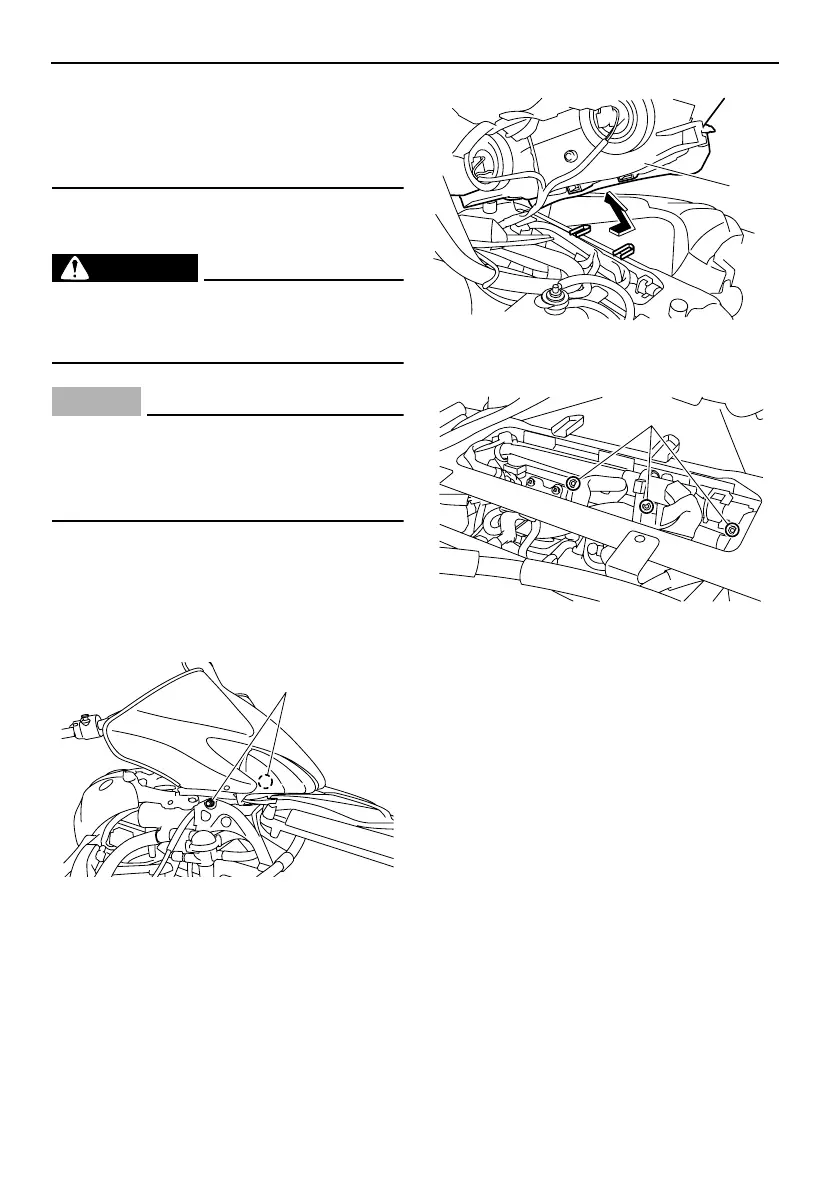

1. Headlight unit bolt
1
1. Headlight unit
1. Joint clamp bolt
1
1
U8JA10E0.book Page 70 Tuesday, May 19, 2009 2:37 PM
