Yamaha VF115 - Engine Shut-Off System

Components
27
garding radio wave transmission in the
country it is used in. For details, consult
your Yamaha dealer.
The Yamaha Security System, which pro-
tects against theft, consists of the receiver
and key fobs. The Yamaha Security System
is available from your Yamaha dealer. For de-
tails, consult your Yamaha dealer.
The engine cannot be started if the security
system is in the lock mode. The engine can
be started only in the unlock mode. For more
information, see the installation and owner’s
manual included with the security system.
EMU40611
Remote control box
The remote control box is equipped with the
remote control lever and electrical switches.
EMU26191
Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the lever
back from neutral engages reverse. The en-
gine will continue to run at idle until the lever
is moved about 35° (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.

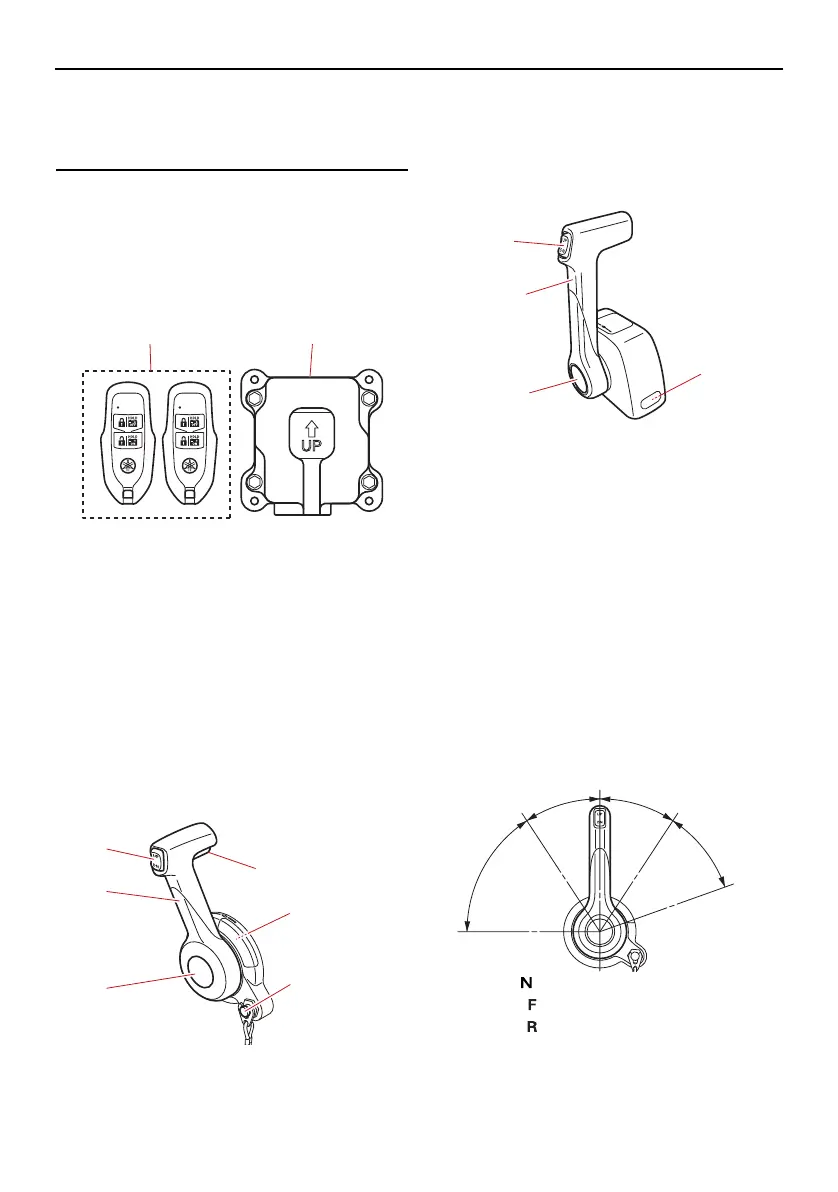

1. Key fob
2. Receiver
1. Power trim and tilt switch
2. Remote control lever
