EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
1
(a)
(b)
ZAUM00**
1. Adjusting nut
EWA10650
WARNING
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
EAU22170

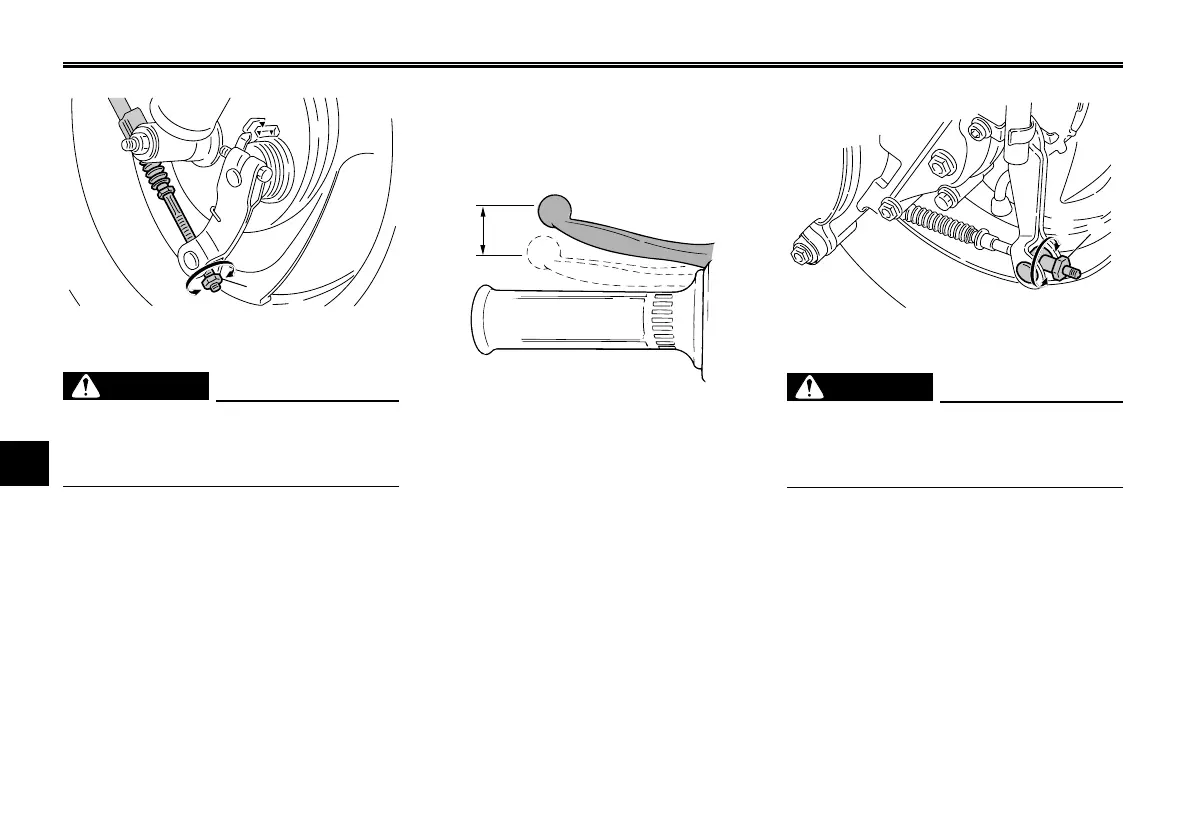

Adjusting the rear brake lever
free play
1
ZAUM00**
1. Rear brake lever free play
The brake lever free play should mea-
sure 10~20 mm (0.039~0.79 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
To increase the brake lever free play,
turn the adjusting nut at the brake shoe
plate in direction (a). To decrease the
brake lever free play, turn the adjusting
nut in direction (b).
Rear brake lever free play, adjusting<IXE>
1
(b)
(a)
ZAUM00**
1. Adjusting nut
EWA10650
If proper adjustment cannot be ob-
tained as described, have a Yamaha
dealer make this adjustment.
