EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
Brake shoes, checking<IXE>
Throttle grip and cable, checking and lubricating<IXE>
EAU22361

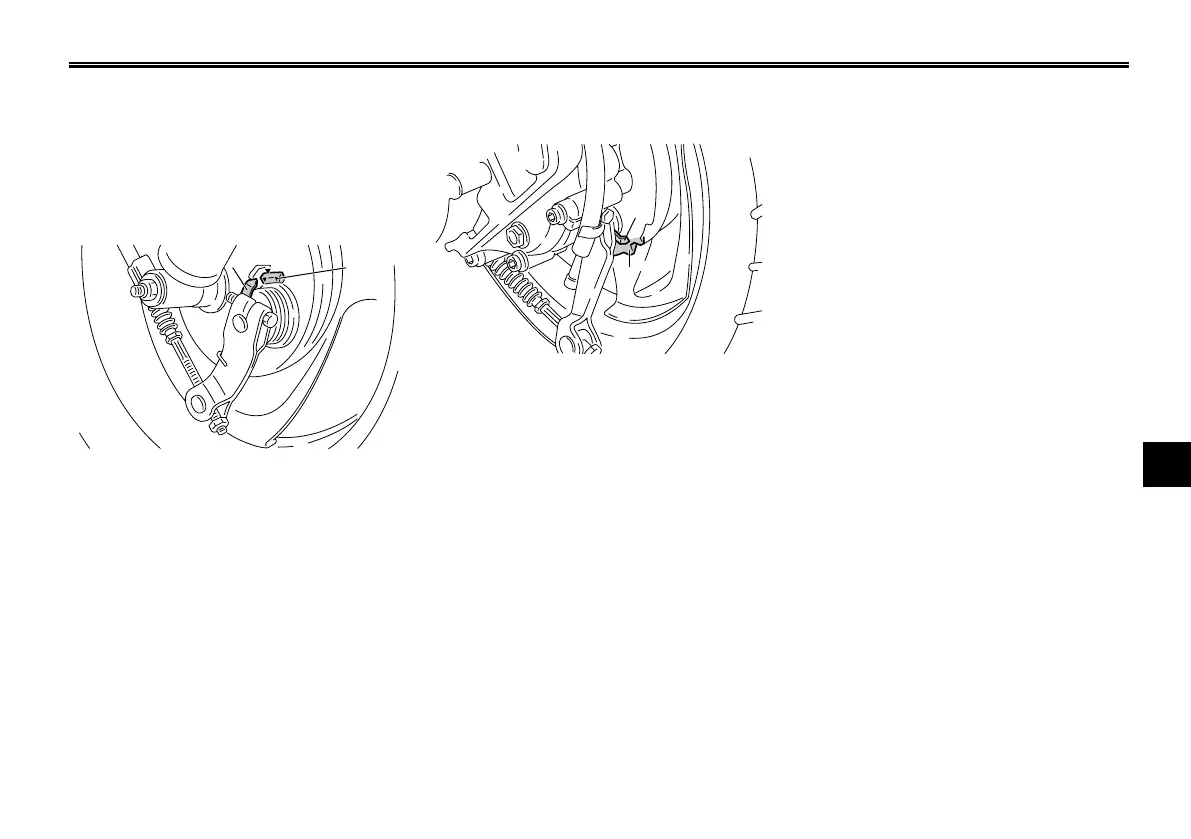

Checking the front and rear
brake shoes
Front
2
1
ZAUM00**
1. Wear indicator
2. Wear limit line
Rear
1
2
ZAUM00**
1. Wear indicator
2. Wear limit line
The front and rear brake shoes must be
checked for wear at the intervals speci-
fied in the periodic maintenance and lu-
brication chart. Each brake is provided
with a wear indicator, which allows you
to check the brake shoe wear without
having to disassemble the brake. To
check the brake shoe wear, check the
position of the wear indicator while ap-
plying the brake. If a brake shoe has
worn to the point that the wear indicator
reaches the wear limit line, have a
Yamaha dealer replace the brake shoes
as a set.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
