3-9
INSTRUMENT AND CONTROL FUNCTIONS
3
EAU00214

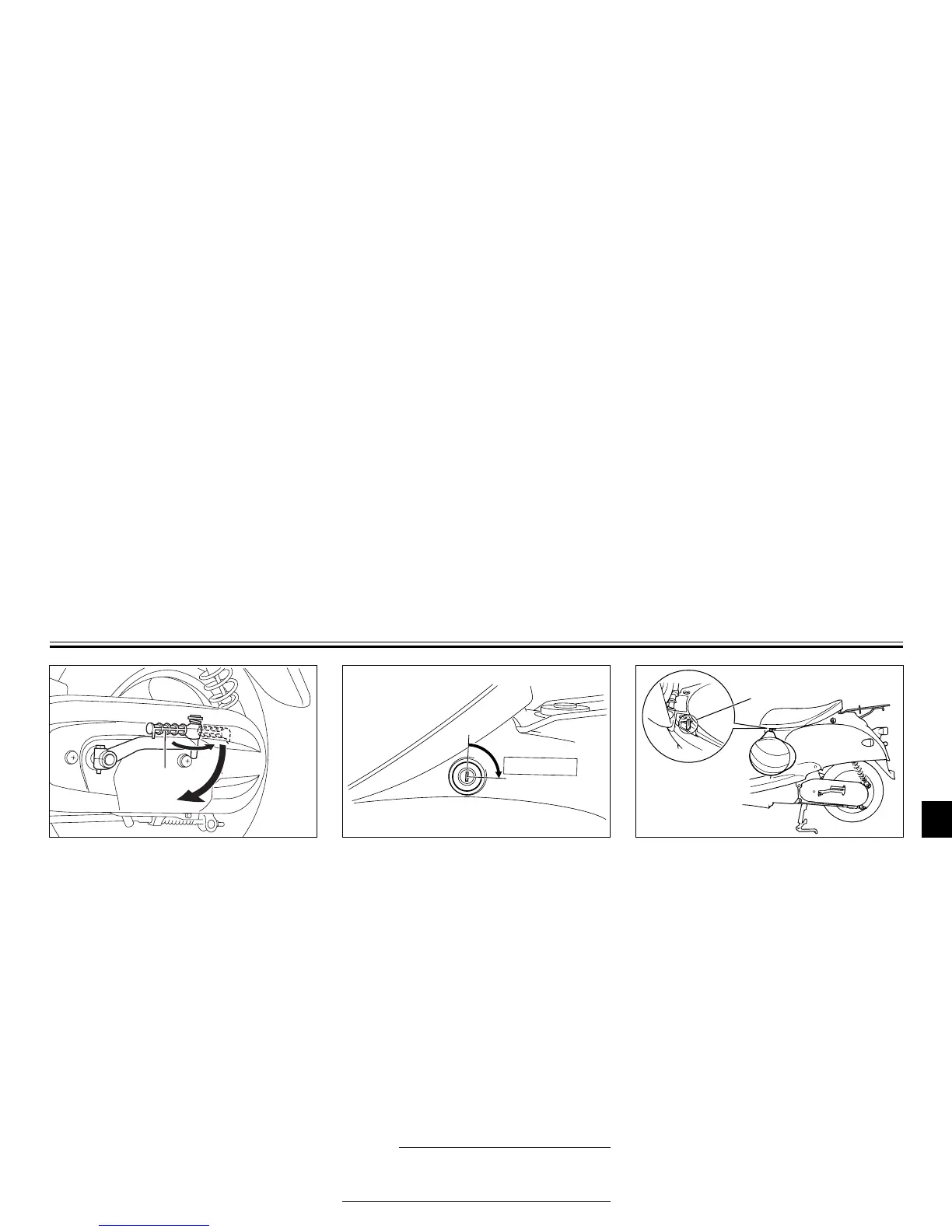

Kickstarter
To start the engine, fold out the kick-
starter lever, move it down lightly with
your foot until the gears engage, and
then push it down smoothly but force-
fully.
1
1. Kickstarter
EAU02978
Seat
To open the seat
1. Insert the key in the lock, and
then turn it as shown.
2. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key.
NOTE:
Make sure that the seat is properly
secured before riding.
a
a. Open.
EAU00262*
Helmet holder
The helmet holder is located under
the seat.
To secure a helmet to the helmet
holder
1. Open the seat.
2. Attach the helmet to the helmet
holder, and then securely close
the seat.
1
1. Helmet holder

Yamaha VINO YJ50RP Specifications

General

Displacement	49cc
Bore x Stroke	38.0mm x 43.6mm
Compression Ratio	12.0:1
Starting System	Electric and Kick
Final Drive	V-Belt
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Drum
Rear Brake	Drum
Front Tire	90/90-10
Rear Tire	90/90-10
Wheelbase	1, 160mm
Engine Type	4-stroke, SOHC
Ignition	TCI
Transmission	Automatic
