PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU04228
Final transmission oil
The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final trans-
mission oil must be changed as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine, warm it up by
riding the scooter for several
minutes, and then stop the
engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the oil filler cap and
drain bolt to drain the oil from the
final transmission case.
5. Install the final transmission oil
drain bolt, and then tighten it to
the specified torque.
6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten
the oil filler cap.
EWA00062
w
8 Make sure that no foreign
material enters the final trans-
mission case.
8 Make sure that no oil gets on
the tire or wheel.
7. Check the final transmission
case for oil leakage. If oil is leak-
ing, check for the cause.

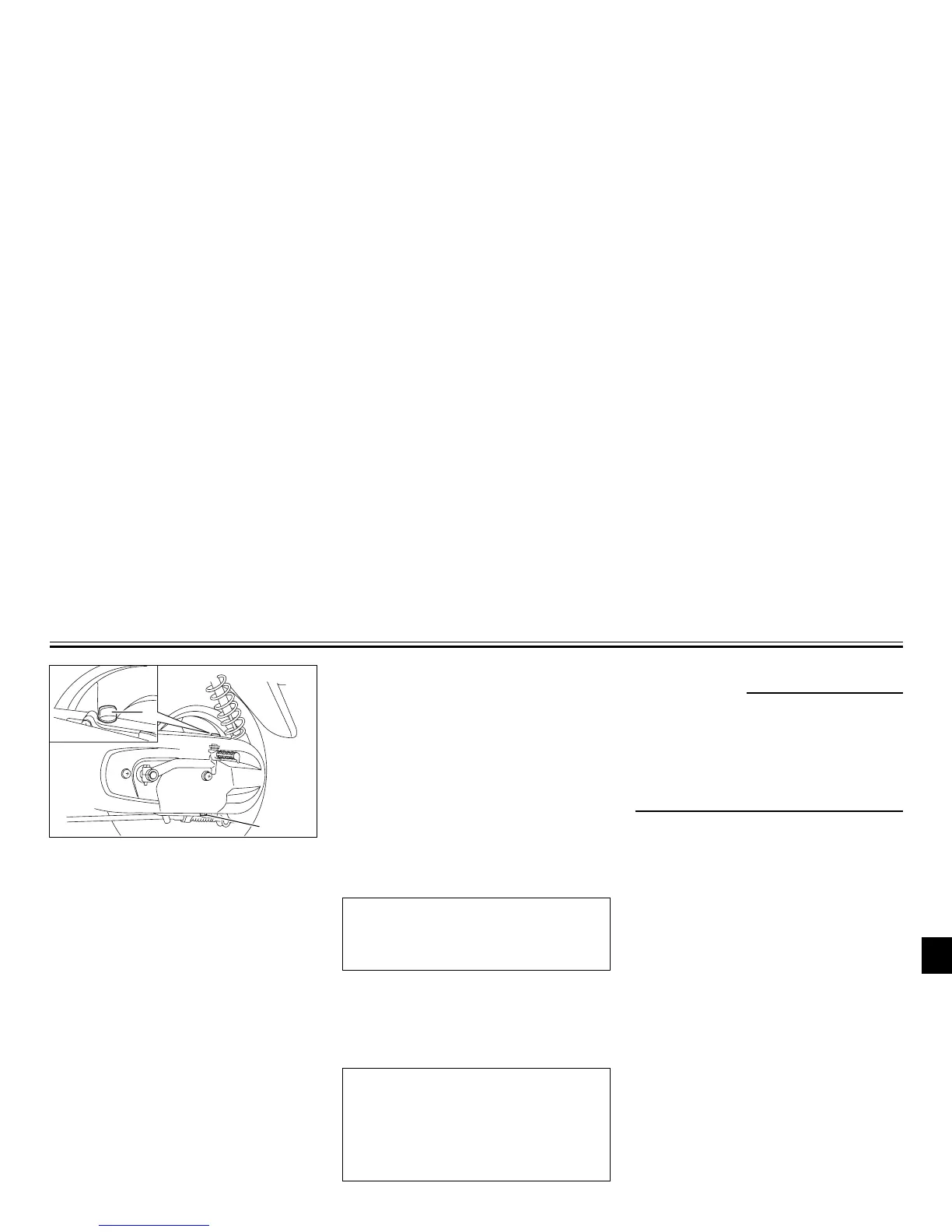

1. Final transmission oil filler cap
2. Final transmission drain bolt
Tightening torque:
Final transmission oil drain bolt:
18 Nm (1.8 m·kgf, 13 ft·lb)
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.11 L (0.1 Imp qt, 0.12 US qt)
