6 - 1
CARB
CARBURETION
CARBURETORS
Order Job/Part Q’ty Remarks

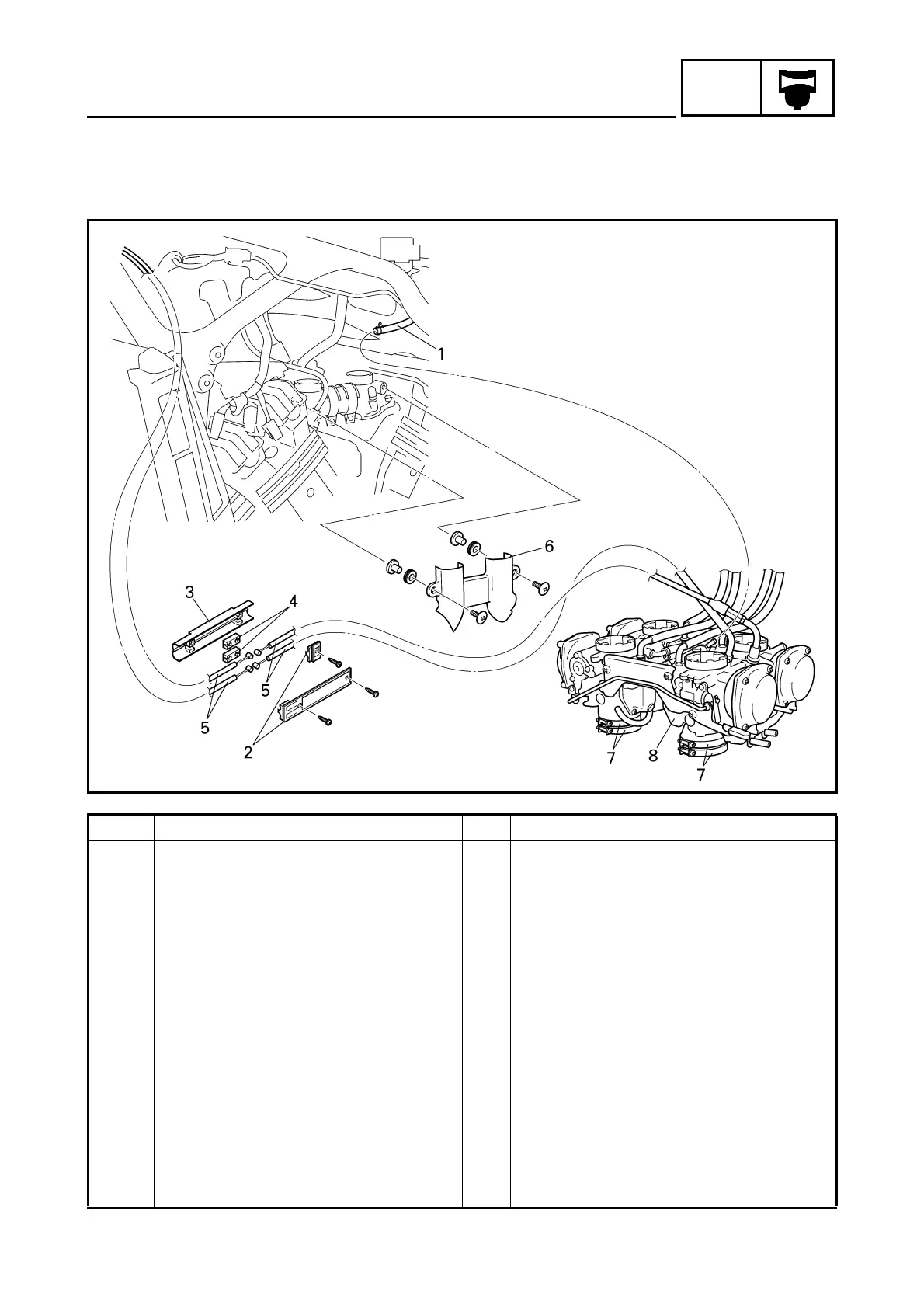

Removing the carburetor Remove the parts in the order listed.
Top cover and covers Refer to “TOP COVER AND COVERS” in
chapter 3.
Air filter case and electrical compo-
nents board
Refer to “AIR FILTER CASE AND ELEC-
TRICAL COMPONENTS BOARD” in
chapter 3.
1 Fuel hose 1 Disconnect.
2 Throttle cable holder cover 2
3 Throttle cable holder 1
4 Throttle cable joint 2
5 Throttle cables 2 Disconnect.
6 Carburetor joint covers (left and right) 2
7 Clamps (carburetor joints) 8 Loosen.
8 Carburetor assembly 1
For installation, reverse the removal pro-
cedure.
CARBURETORS
