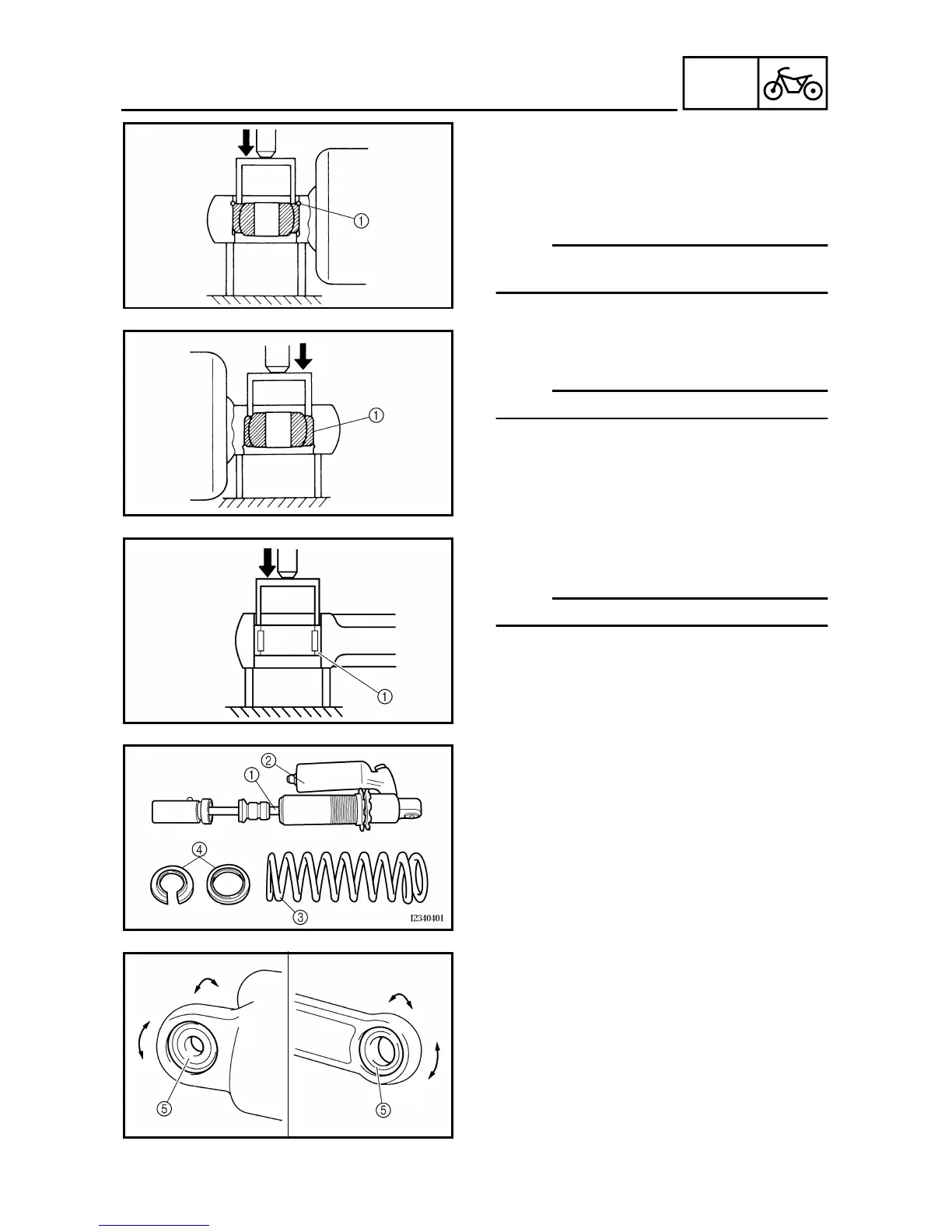

Yamaha WR250 - Rear Shock Absorber - Inspection; Rear Shock Absorber Removal Points

5 - 63
CHAS
EC583000
REMOVAL POINTS
EC583320
Bearing
1. Remove:
● Stopper ring (upper bearing) 1
N
OTE:
Press in the bearing while pressing its outer
race and remove the stopper ring.
2. Remove:
● Upper bearing 1
N
OTE:
Remove the bearing by pressing its outer race.
3. Remove:
● Lower bearing 1
N
OTE:
Remove the bearing by pressing its outer race.
EC584000
INSPECTION
Rear shock absorber
1. Inspect:
● Damper rod 1
Bends/damage → Replace rear shock
absorber assembly.
● Shock absorber 2
Oil leaks → Replace rear shock
absorber assembly.
Gas leaks → Replace rear shock
absorber assembly.
● Spring 3
Damage → Replace spring.
Fatigue → Replace spring.
Move spring up and down.
● Spring guide 4
Wear/damage → Replace spring guide.
● Bearing 5
Free play exists/unsmooth revolution/
rust → Replace.
REAR SHOCK ABSORBER
