Instrument and control functions
3-20
3
TIP
To obtain a precise adjustment, it is
advisable to check the actual total
number of clicks or turns of each
damping force adjusting mechanism.
This adjustment range may not exactly
match the specifications listed due to
small differences in production.
WARNING
EWA10232
These shock absorber assemblies
contain highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assemblies.
 Do not tamper with or attempt
to open the cylinder assemblies.
 Do not subject the shock ab-
sorber assemblies to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
 Do not deform or damage the
cylinders in any way. Cylinder
damage will result in poor
damping performance.
 Do not dispose of a damaged or
worn-out shock absorber
as-
se
mbly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
EAU15211

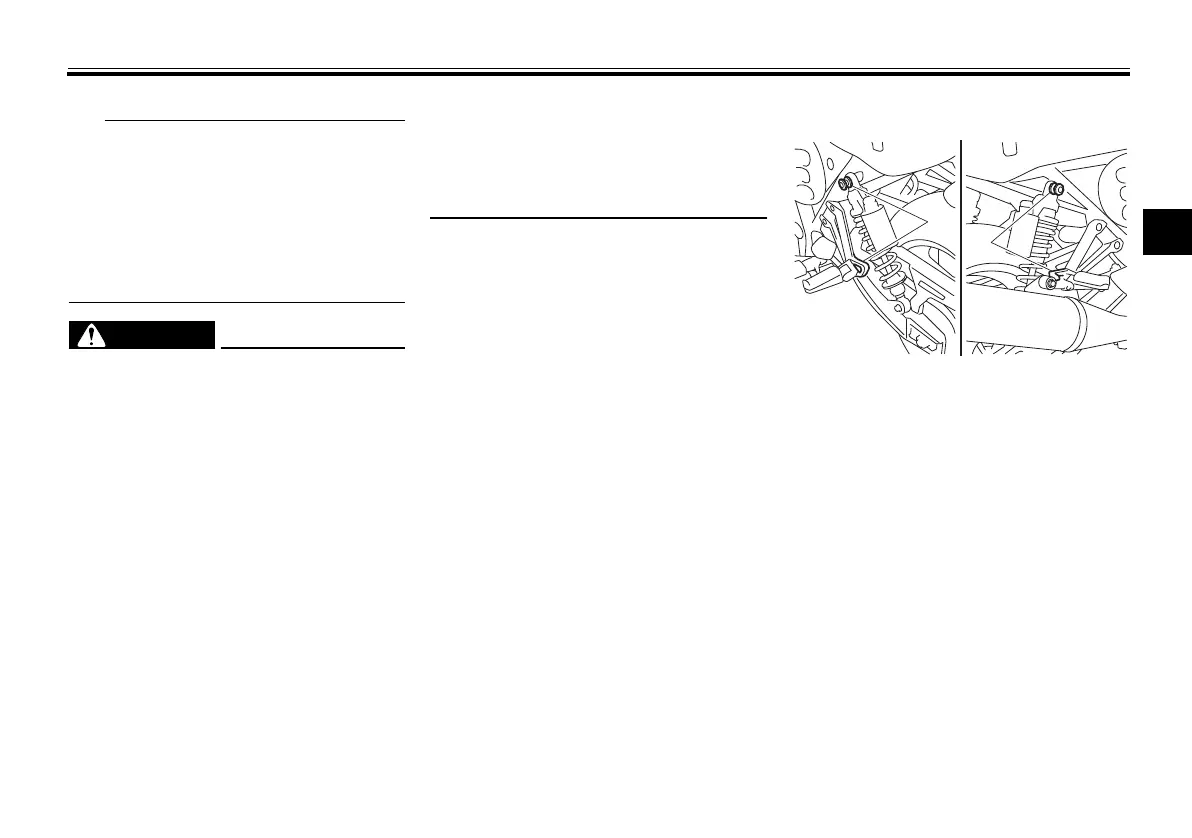

Luggage strap holders
There are four luggage strap holders:
one on each passenger footrest and
two below the passenger seat.
1. Luggage strap holder
1
1
U2PNE1E0.book Page 20 Monday, December 28, 2015 11:03 AM

Yamaha XJR1300 Specifications

General

Displacement	1251 cc
Bore x Stroke	79.0 mm x 63.8 mm
Compression Ratio	9.7:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Fuel Capacity	14.5 liters
Engine Type	Air-cooled, 4-stroke, DOHC, 4-valve
Rear Suspension	Swingarm
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
