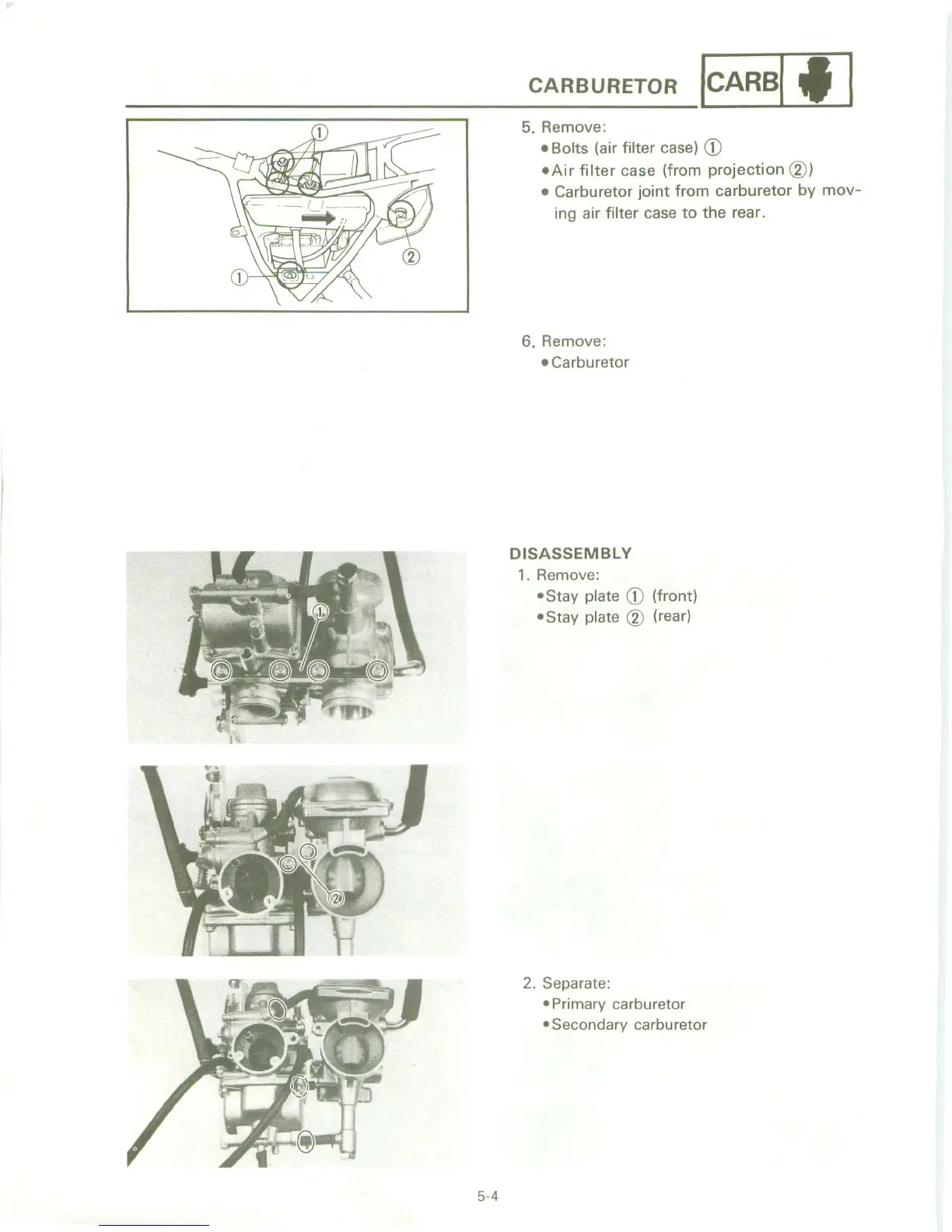

CARBURETOR ICARBI. I
5. Remove:
- Bolts (air filter case) CD
-Air filter case (from projection ®)
_ Carburetor joint from carburetor by mov-
ing air filter case to the rear.
6. Remove:
- Carburetor
DISASSEMBLY
1. Remove:
- Stay plate CD (front)
-Stay plate ® (rear)
2. Separate:
- Primary carburetor
- Secondary carburetor
