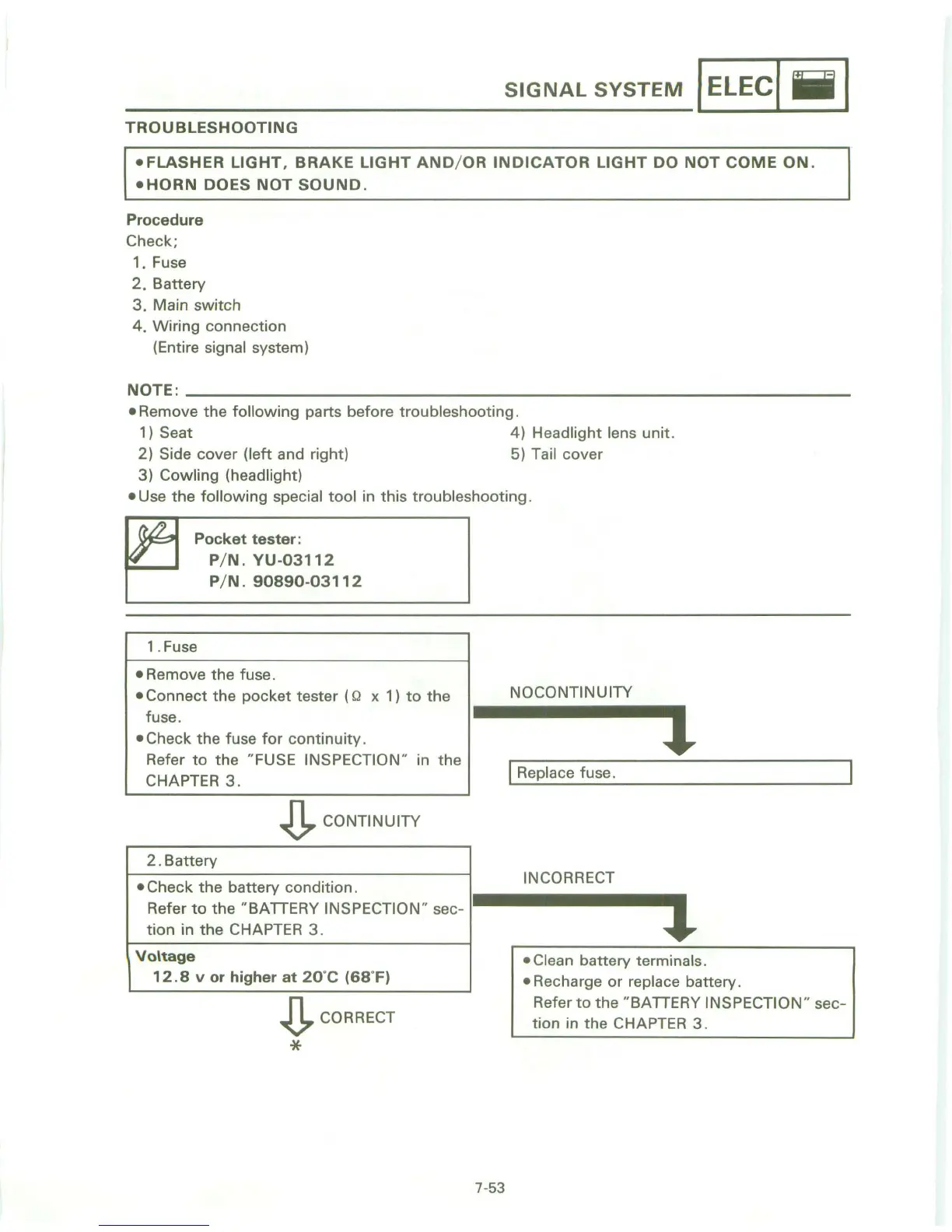

SIGNAL
SYSTEM I
Heel
iii
I
TROUBLESHOOTING
.FLASHER
LIGHT,
BRAKE
LIGHT
AND/OR
INDICATOR
LIGHT
DO
NOT
COME
ON
.
•
HORN
DOES
NOT
SOUND.
Procedure
Check;
1. Fuse
2. Battery
3.
Main switch
4. Wiring connection
(Entire
signal system)
NOTE:
__________________________________________________________
_
• Remove the
following
parts before troubleshooting.
1) Seat
4)
Headlight lens unit.
2) Side cover (left and right) 5) Tail cover
3)
Cowling (headlight)
•
Use the
following
special
tool
in this troubleshooting.
Pocket
tester:
P/N.
YU-03112
P
/N.
90890-03112
1. Fuse
• Remove the fuse.
• Connect the pocket tester (Q x 1)
to
the
fuse.
• Check the fuse
for
continuity.
Refer
to
the
"FUSE INSPECTION" in
the
CHAPTER
3.
~
CONTINUITY
2.
Battery
• Check
the
battery condition.
Refer
to
the
"BATTERY INSPECTION" sec-
tion
in
the
CHAPTER
3.
Voltage
12.8
v
or
higher
at
20·C (68·F)
~
CORRECT
*
7-53
NOCONTINUITY
1
I Replace fuse .
---------------,
INCORRECT
~
• Clean battery termin
• Recharge
or
replace
--------------~
als.
battery.
Refer
to
the "BATTERY INSPECTION" sec-
tion
in the CHAPTER
3.
To Next Page
