DESCRIPTION
2-1
2
EAU10410

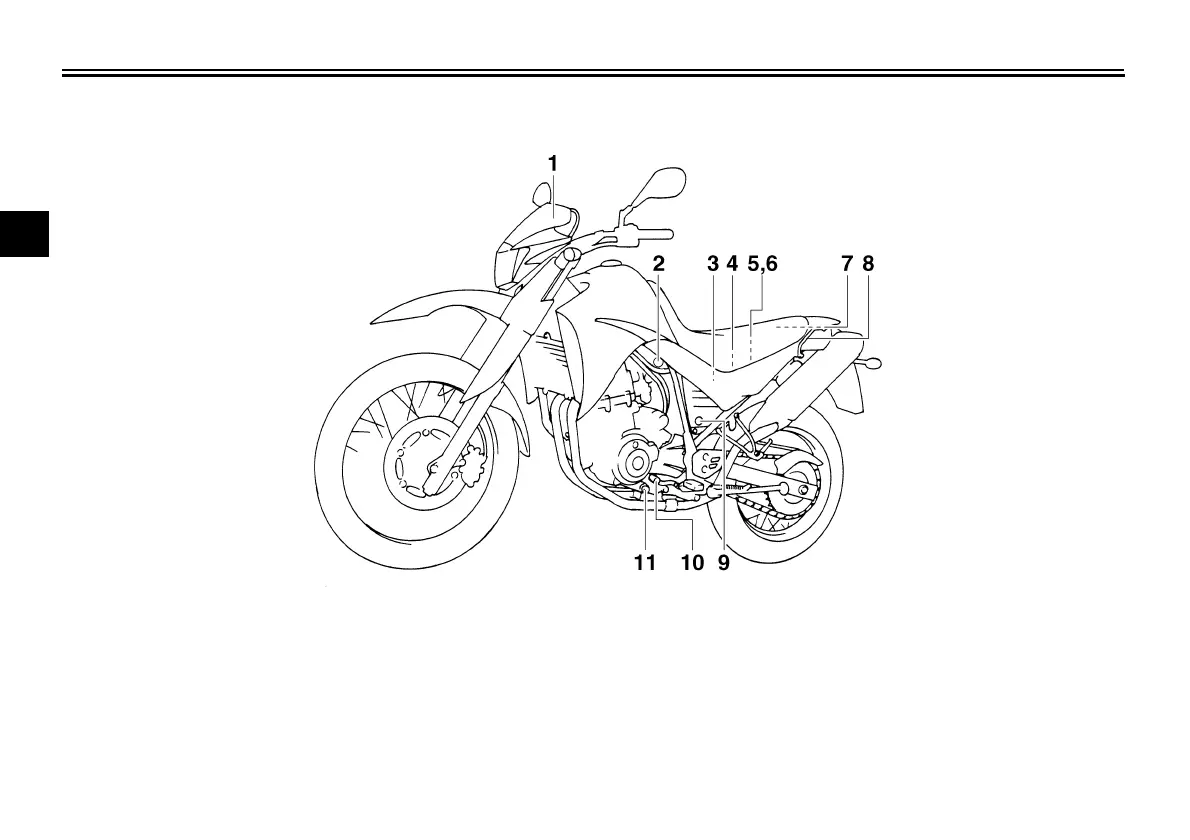

Left view
1. Windshield
2. Idle adjusting screw (page 6-17)
3. Main fuse (page 6-32)
4. Battery (page 6-30)
5. Fuse box 1 (page 6-32)
6. Fuse box 2 (page 6-32)
7. Storage compartment (page 3-13)
8. Grab bar
9. Seat lock (page 3-12 )
10.Shift pedal (page 3-9)
11.Engine oil drain bolt (crankcase) (page 6-10)
