DESCRIPTION
2-3
2
EAU32240

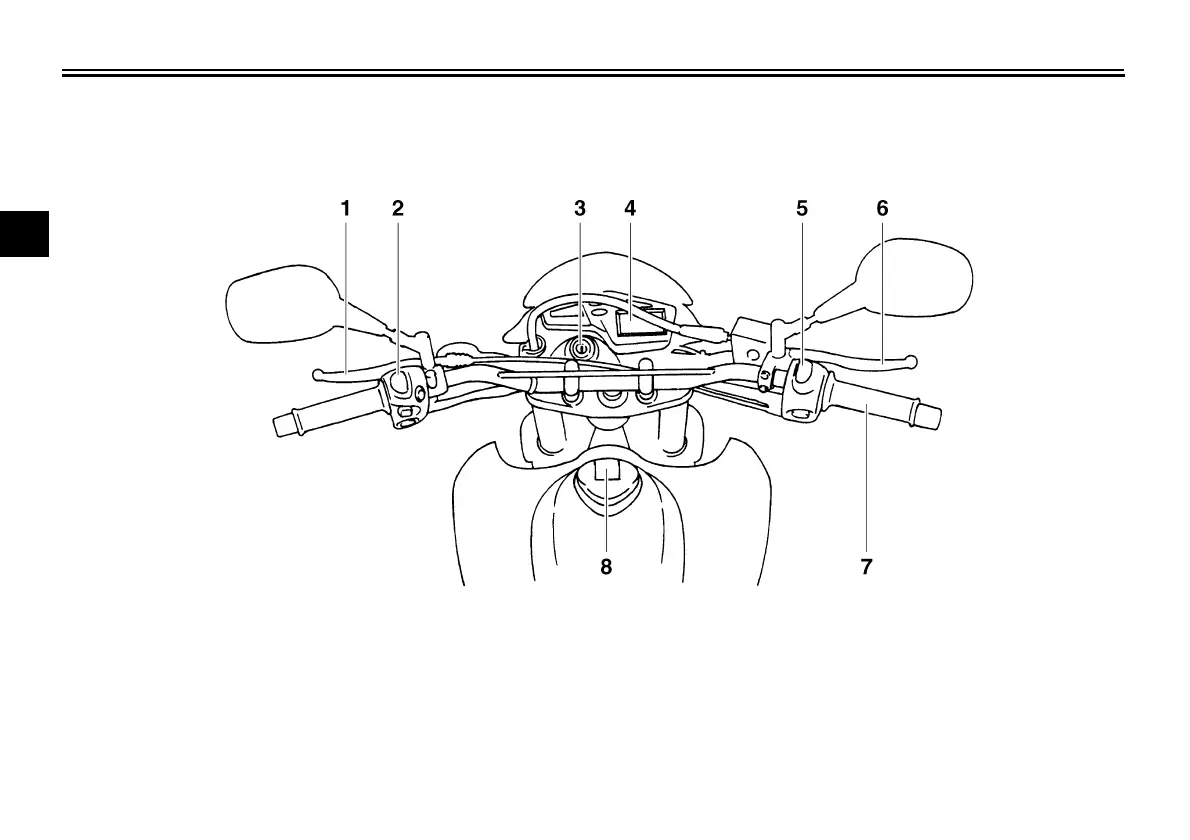

Controls and instruments
XT660R
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Main switch/steering lock (page 3-2)
4. Multi-function display (page 3-5)
5. Right handlebar switches (page 3-7)
6. Brake lever (page 3-9)
7. Throttle grip (page 6-18)
8. Fuel tank cap (page 3-10)
