REAR WHEEL
4-15
EAS22020
REAR WHEEL

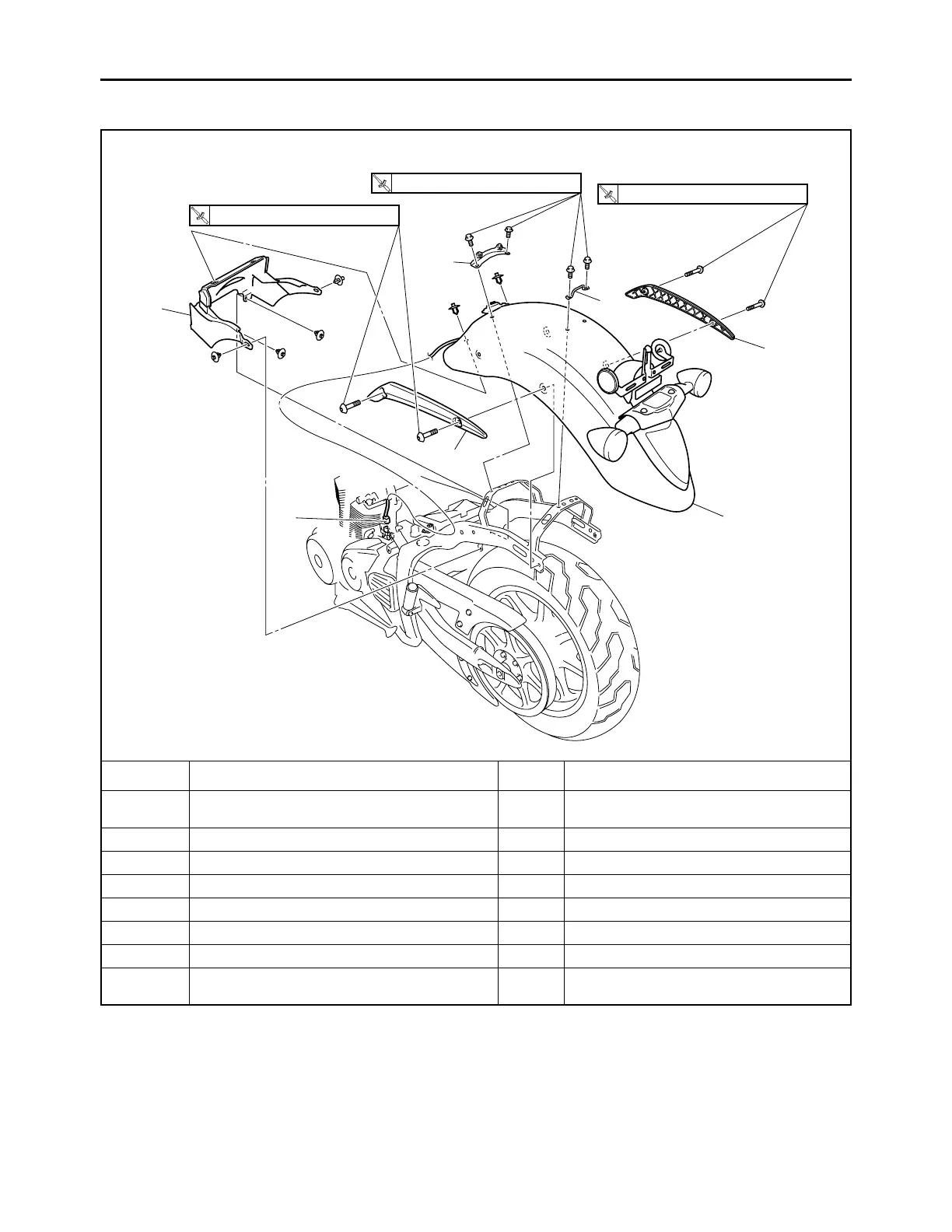

Removing the rear fender
Order Job/Parts to remove Q’ty Remarks
Rider seat/Passenger seat/Seat lock brack-
et/Tool kit tray
Refer to “GENERAL CHASSIS” on page
4-1.
1 Tail/brake light wire harness coupler 1 Disconnect.
2 Rear fender bracket 2
3 Passenger seat bracket 1
4 Passenger seat guide 1
5 Rear fender assembly 1
6 Mudguard 1
For installation, reverse the removal proce-
dure.
1
2
2
5
4
3
6
T
R
T
R
R
23 Nm (2.3 m • kg, 17 ft • Ib)
16 Nm (1.6 m
• kg, 11 ft • Ib)
23 Nm (2.3 m
• kg, 17 ft • Ib)
