SHIFT SHAFT
5-57
EAS25410
SHIFT SHAFT

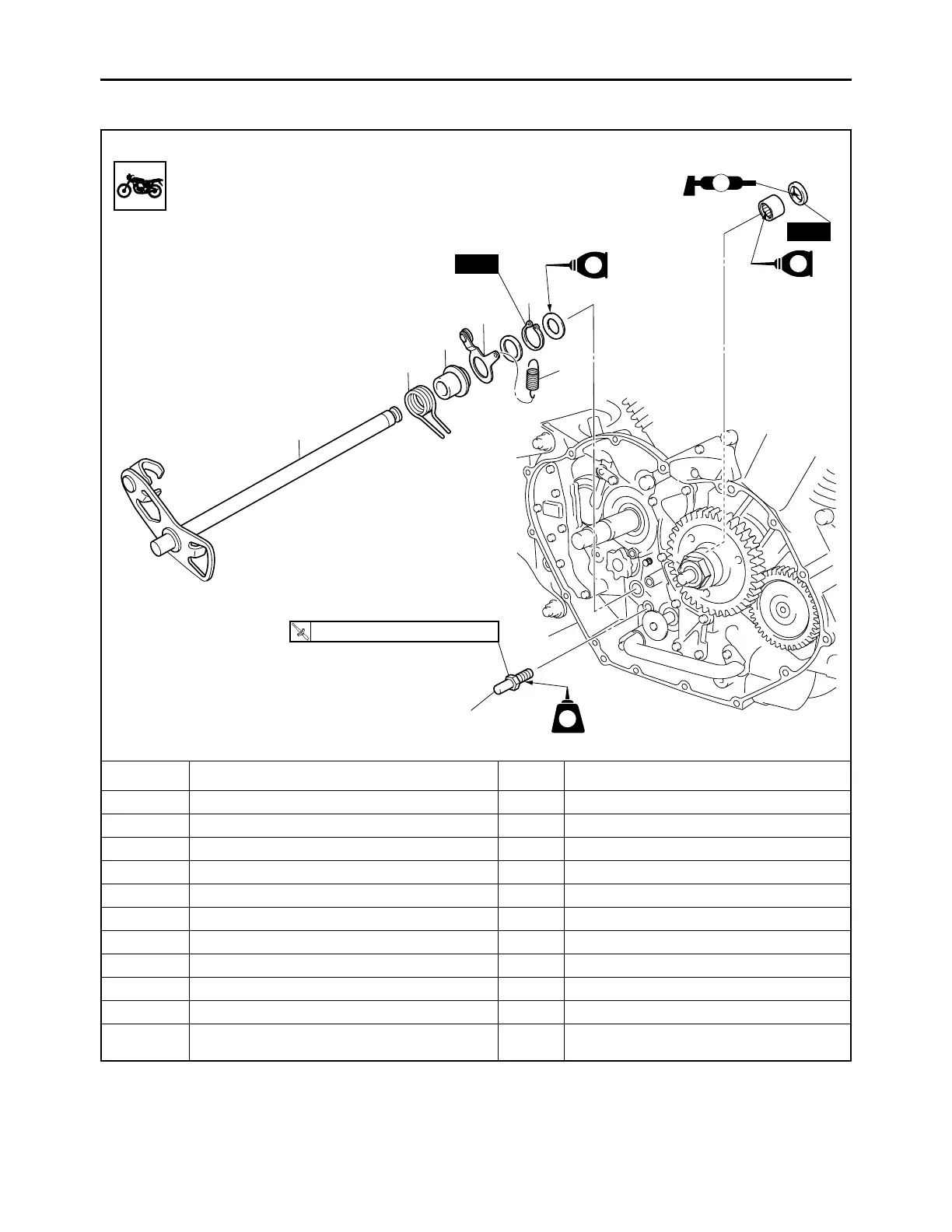

Removing the shift shaft and stopper lever
Order Job/Parts to remove Q’ty Remarks
Drive pulley cover Refer to “BELT DRIVE” on page 4-72.
Shift arm Refer to “ENGINE REMOVAL” on page 5-1.
Primary drive gear cover Refer to “CLUTCH” on page 5-46.
1 Shift shaft 1
2 Stopper lever spring 1
3 Circlip 1
4 Stopper lever 1
5 Collar 1
6 Shift shaft spring 1
7 Shift shaft spring stopper 1
For installation, reverse the removal proce-
dure.
LS
New
E
7
LT
1
6
5
4
3
2
New
E
R
22 Nm (2.2 m
•
kg, 16 ft
•
Ib)
