INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU55820

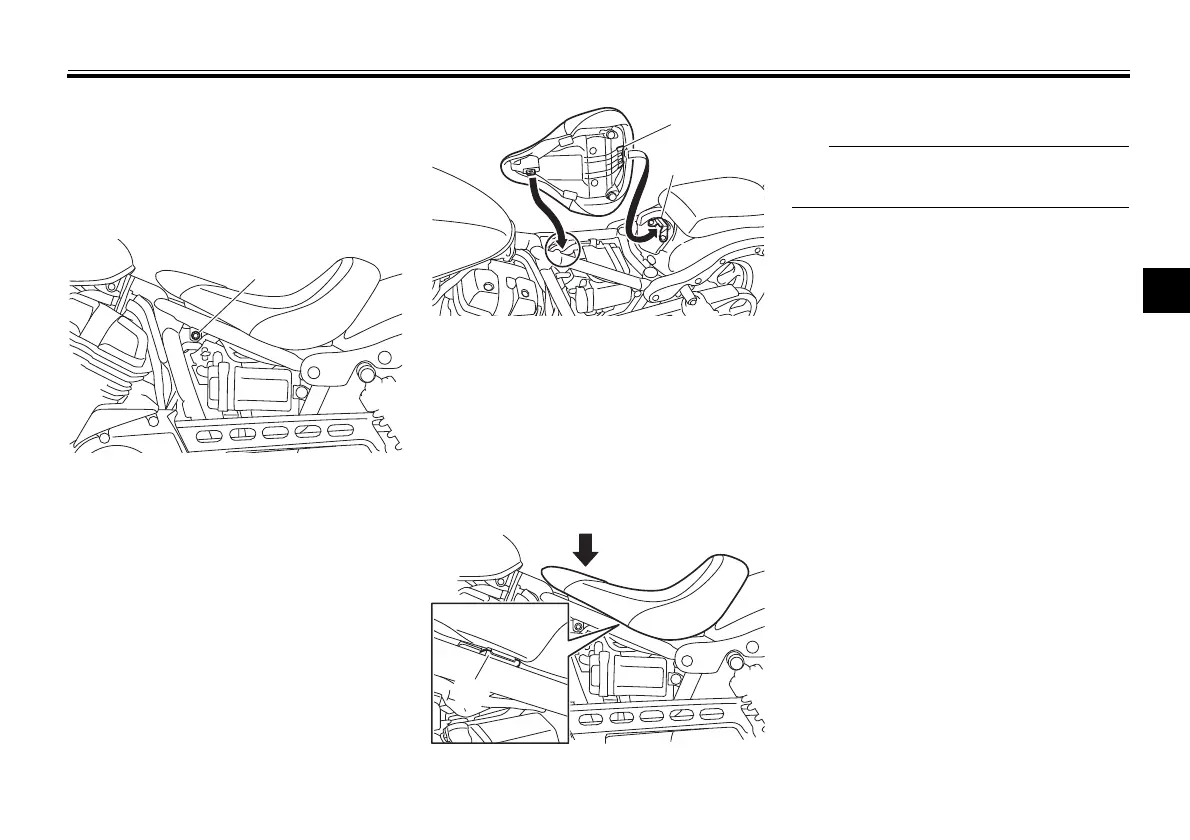

Rider seat
To remove the rider seat
1. Remove panel A. (See page 6-8.)
2. Remove the bolt.
3. Lift the front of the rider seat up,
and then pull the rider seat off.
To install the rider seat
1. Insert the projection on the rear of
the rider seat into the seat holder
as shown.
2. Place the rider seat in the original
position.
3. While pushing the front of the rider
seat down so that there is no
space between the rubber damp-
ers and the frame, tighten the bolt.
4. Install the panel.
Make sure that the rider seat is properly
secured before riding.
1. Bolt
1. Projection
2. Seat holder
1. Rubber damper
U2DXE0E0.book Page 16 Monday, June 24, 2013 9:30 AM
