Yamaha YZF-R1 1998 Service Manual

5 - 16
COOL
WATER PUMP
EB503040

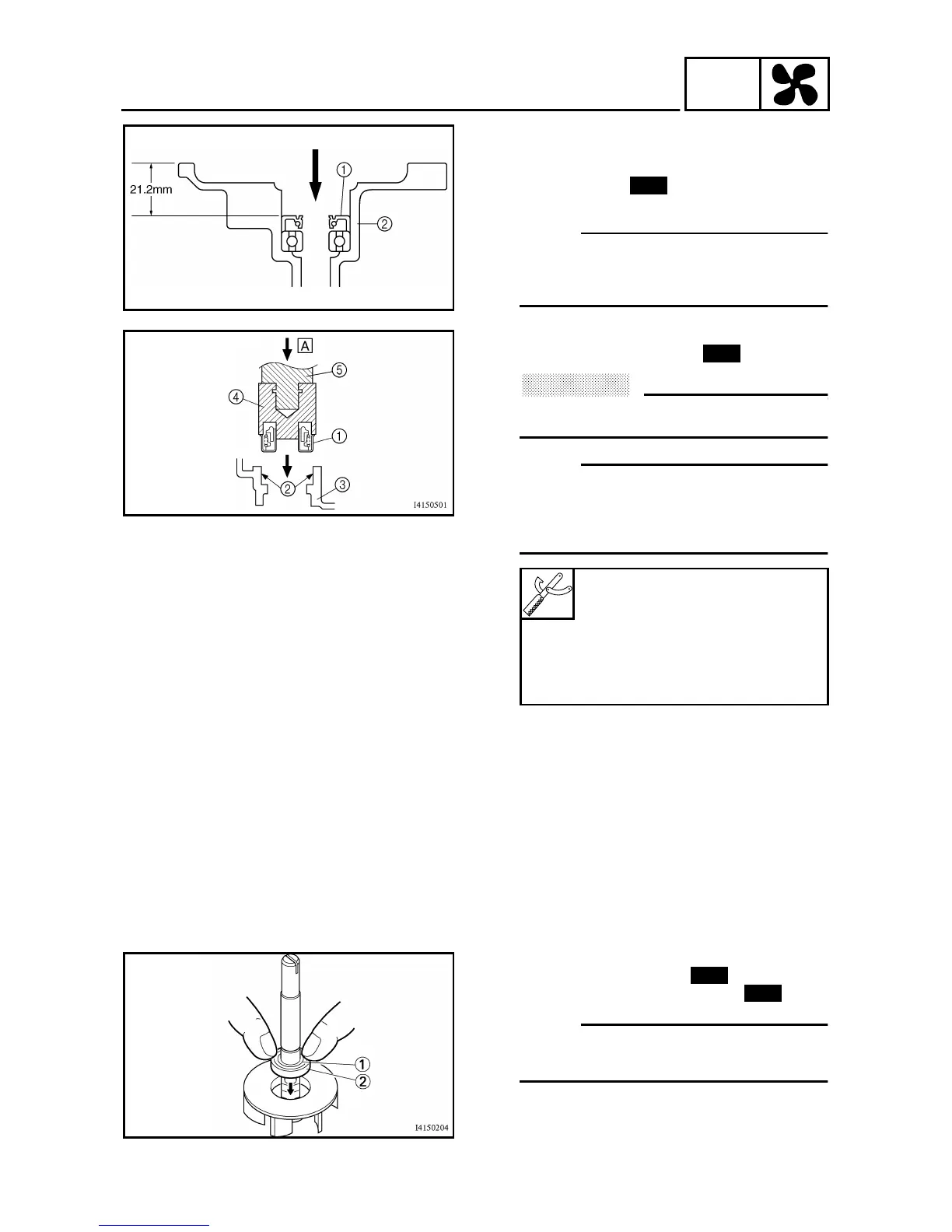

ASSEMBLING THE WATER PUMP
1.Install:
• oil seal 1
(into the water pump housing 2)
NOTE:
• Before installing the oil seal, apply tap
water or coolant onto its outer surface.
• Install the oil seal with a socket that
matches its outside diameter.
New
2.Install:
• water pump seal 1
ACHTUNG:
CAUTION:
Never lubricate the water pump seal
surface with oil or grease.
NOTE:
• Install the water pump seal with the
special tools.
• Before installing the water pump seal,
apply Yamaha bond No.1215 2 to the
water pump housing 3.
Å Push down.
Mechanical seal installer 4
90890-04078
Middle driven shaft bearing
driver 5
90890-04058
Yamaha bond No. 1215
90890-85505
New
3.Install:
• rubber damper 1
• rubber damper holder 2
NOTE:
Before installing the rubber damper,
apply tap water or coolant onto its outer
surface.
New
New
